HEATING / AIR CONDITIONING  CONDENSER FAN  DISASSEMBLY


PROCEDURE

Hide 88453C 1.REMOVE NO. 1 COOLING FAN

a.
E415274

Remove the nut and No. 1 cooling fan.


Hide 88550L 2.REMOVE NO. 1 COOLING FAN MOTOR ASSEMBLY

a.
E415275C01

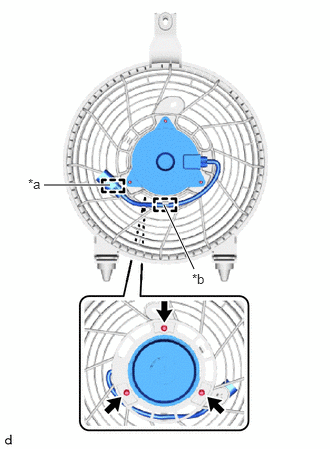

1.146,1.927 0.458,1.927 true 1.708,2.135 2.021,2.802 true 0.292,1.833 0.604,2.031 0.313,0.198 10 false *a 2,2.823 2.313,3.021 0.313,0.198 10 false *b
*a Clamp
*b Guide


Disconnect the clamp and guide.


b.

Remove the 3 screws and No. 1 cooling fan motor assembly from the fan shroud.


Hide 88897T 3.REMOVE COOLER GROMMET

a.
E415276

Remove the cooler grommet from the fan shroud.


Hide 88467H 4.REMOVE NO. 1 CONDENSER BRACKET CUSHION

a.
E415277

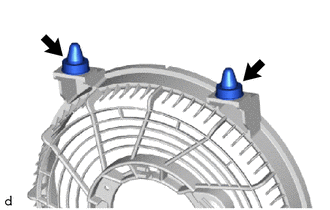

Remove each No. 1 condenser bracket cushion from the fan shroud.


Hide 88453D 5.REMOVE NO. 2 COOLING FAN

a.
E415278

Remove the nut and No. 2 cooling fan.


Hide 88550M 6.REMOVE NO. 2 COOLING FAN MOTOR ASSEMBLY

a.
E415279C01

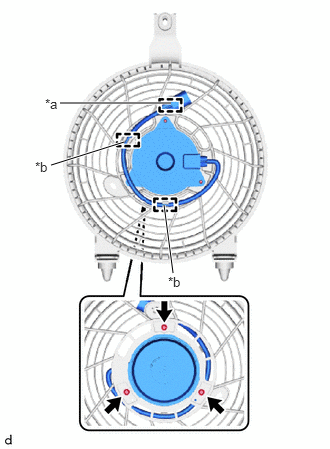

1.292,1.479 0.531,1.719 true 1.708,2.135 1.802,2.844 true 1.781,1.073 0.625,1.073 true 0.469,1 0.781,1.198 0.313,0.198 10 false *a 0.365,1.656 0.677,1.854 0.313,0.198 10 false *b 1.75,2.854 2.063,3.052 0.313,0.198 10 false *b
*a Clamp
*b Guide


Disconnect the clamp and guide.


b.

Remove the 3 screws and No. 2 cooling fan motor assembly from the fan shroud.


Hide 88897T 7.REMOVE COOLER GROMMET

a.
E415280

Remove the cooler grommet from the fan shroud.


Hide 88467H 8.REMOVE NO. 1 CONDENSER BRACKET CUSHION

a.
E415281

Remove each No. 1 condenser bracket cushion from the fan shroud.
