HEATING / AIR CONDITIONING  CONDENSER  REASSEMBLY


PROCEDURE

Hide 88474 1.INSTALL COOLER DRYER

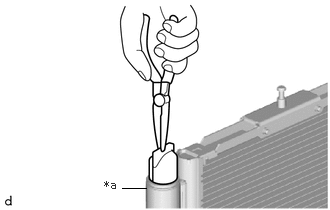

a.
E415307C01
1.271,1.958 1.521,1.958 false 1.083,1.854 1.396,2.052 0.313,0.198 10 false *a
*a Modulator


Using pliers, install a new cooler dryer to the modulator.


b.
I110151

Apply sufficient compressor oil to the O-ring.

Compressor oil:

ND-OIL 8 or equivalent

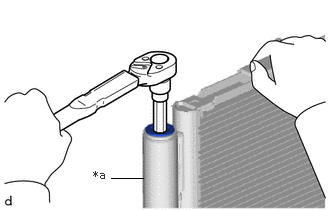

c.
E415308C01
1.156,1.854 1.49,1.854 false 0.969,1.75 1.281,1.948 0.313,0.198 10 false *a
*a Modulator


Using a 14 mm hexagon socket wrench, install the cap to the modulator.

Torque:
4.0 N*m (41 kgf*cm, 35 in.*lbf)

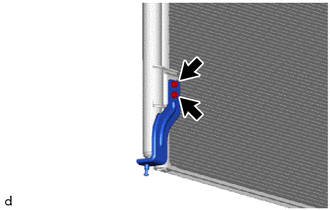

d.
E416483

Install the bracket with the 2 bolts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)
