HEATING / AIR CONDITIONING  COMPRESSOR(for 7GR-FKS)  INSTALLATION

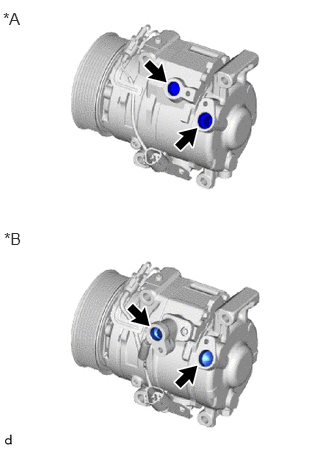

0.031,0.094 0.406,0.333 0.375,0.24 12 false *A 0.042,2.385 0.417,2.625 0.375,0.24 12 false *B

*A	for Others
*B	for Middle East

When replacing the compressor assembly with magnet clutch with a new one, gradually discharge the refrigerant gas from the service valve, and drain the following amount of oil from the new compressor assembly with magnet clutch before installation.

Standard:

w/o Rear Cooler:

(Oil capacity inside the new compressor assembly with magnet clutch: 120 to 135 cc (4.06 to 4.56 fl.oz)) - (Remaining oil amount in the removed compressor assembly with magnet clutch) = (Oil amount to be removed from the new compressor)

Standard:

w/ Rear Cooler:

(Oil capacity inside the new compressor assembly with magnet clutch: 140 to 155 cc (4.73 to 5.24 fl.oz)) - (Remaining oil amount in the removed compressor assembly with magnet clutch) = (Oil amount to be removed from the new compressor)

NOTICE:

·

If a new compressor assembly with magnet clutch is installed without removing some oil, there will be too much oil in the system due to the oil remaining in the pipes of the vehicle. Excessive oil in the system prevents heat exchange in the refrigeration cycle and causes ineffective cooling.

·

If the amount of oil remaining in the old compressor assembly with magnet clutch is too small, check the air conditioning system for oil leaks.

·

Be sure to use ND-OIL 8 or equivalent compressor oil. If any compressor oil other than ND-OIL 8 is used, compressor assembly with magnet clutch insulation performance may decrease, resulting in a leak of electric power.

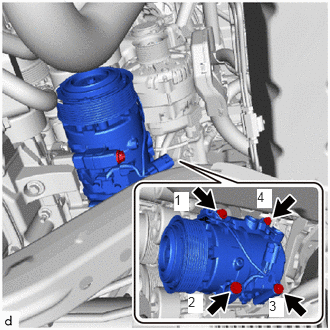

1.813,2 1.969,2.198 0.156,0.198 10 true 1 1.958,3.063 2.115,3.26 0.156,0.198 10 true 2 2.802,3.104 2.958,3.302 0.156,0.198 10 true 3 2.677,1.969 2.833,2.167 0.156,0.198 10 true 4

Temporarily install the compressor assembly with magnet clutch with the generator bracket and 4 bolts.

Connect the connector.

Remove the vinyl tape from the suction hose sub-assembly and compressor assembly with magnet clutch.

Install the suction hose bracket with the bolt.

Torque:

9.8 N*m (100 kgf*cm, 87 in.*lbf)

0.021,0.031 0.292,0.24 0.271,0.208 12 true *A 0.031,2.615 0.302,2.823 0.271,0.208 12 true *B

*A	for Others
*B	for Middle East

Remove the vinyl tape from the discharge hose sub-assembly and compressor assembly with magnet clutch.
