HEATING / AIR CONDITIONING  COMPRESSOR(for 7GR-FKS)  INSPECTION

0.094,0.104 0.406,0.302 0.313,0.198 10 false *a

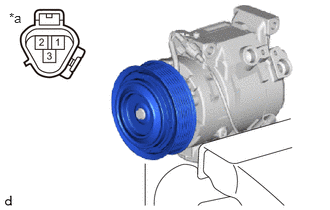

*a	Component without harness connected (Cooler Compressor with Magnet Clutch Assembly)

Apply battery voltage to the clutch and check the operation of the clutch.

OK:

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 3 (MG+) Battery negative (-) → Body ground	Magnet clutch is engaged

If the result is not as specified, replace the magnet clutch assembly.

0.094,0.104 0.406,0.302 0.313,0.198 10 false *a

*a	Component without harness connected (Magnet Clutch Assembly)

Disconnect the wire harness of the cooler compressor with magnet clutch assembly and check that the magnet clutch assembly operates when battery voltage is applied to the connector terminal on the magnet clutch side.

OK:

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 1 Battery negative (-) → Body ground	Magnet clutch is engaged
