RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384886 COMPRESSOR(for 7GR-FKS) A

HEATING / AIR CONDITIONING  COMPRESSOR(for 7GR-FKS)  DISASSEMBLY


PROCEDURE

Hide 88688K 1.REMOVE COOLER COMPRESSOR BRACKET

a.

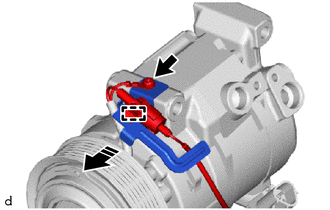

E415259C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the clamp.


b.

Remove the screw and cooler compressor bracket.


Hide 88410 2.REMOVE MAGNET CLUTCH ASSEMBLY

a.

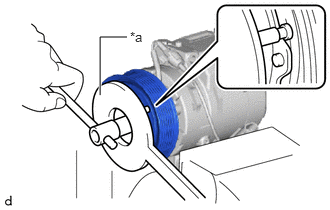

E415260C01
1.042,0.99 1.042,0.385 1.042,0.385 1.323,0.385 true 1.354,0.302 1.667,0.5 0.313,0.198 10 false *a
*a SST


Clamp the compressor assembly with magnet clutch in a vise between aluminum plates.


b.

Using SST, hold the magnet clutch hub.

SST
09985-00270


c.

Remove the bolt, magnet clutch hub and magnet clutch washer(s).

HINT:

There is no set number of magnet clutch washers that are used for adjusting clutch clearance.



d.

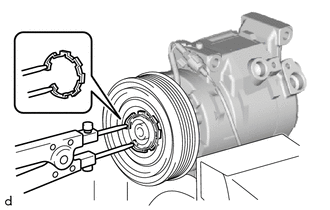

E415261

Using a snap ring expander, remove the snap ring and magnet clutch rotor.

NOTICE:

Do not damage the seal cover of the bearing when removing the snap ring.



e.
E415262

Using a snap ring expander, remove the snap ring and magnet clutch stator.
