Vehicle Interior
_079316
HEATING / AIR CONDITIONING
_0384885
PTC HEATER ASSEMBLY
G
HEATING / AIR CONDITIONING PTC HEATER ASSEMBLY INSPECTION
PROCEDURE
87710G
1.INSPECT QUICK HEATER ASSEMBLY (for 600 kw)
a.
1.542,0.469 1.958,0.667
0.417,0.198
1.552,2.865 1.969,3.063
0.417,0.198
0.396,0.521 0.781,0.906
0.385,0.385
10
false
*a
1.677,0.49 2.063,0.875
0.385,0.385
10
false
s1
1.677,2.885 2.063,3.271
0.385,0.385
10
false
s2

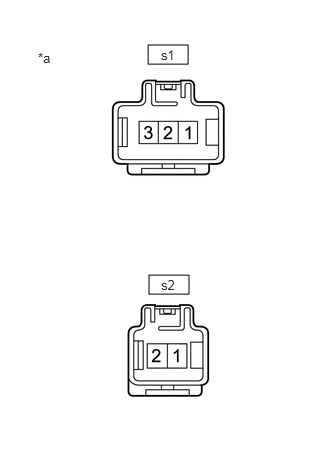

| *a | Component without harness connected
(Quick Heater Assembly) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition s1-1 - s2-1 Always Below 1 Ω s1-2 - s2-2 Always Below 1 Ω s1-2 - s2-1 Always Below 1 Ω s1-3 - s2-2 Always Below 1 Ω
If the result is not as specified, replace the quick heater assembly.
87710G
2.INSPECT QUICK HEATER ASSEMBLY (for 840 kw)
a.
1.542,0.469 1.958,0.667
0.417,0.198
1.552,2.865 1.969,3.063
0.417,0.198
0.396,0.521 0.781,0.906
0.385,0.385
10
false
*a
1.677,0.49 2.063,0.875
0.385,0.385
10
false
s1
1.677,2.885 2.063,3.271
0.385,0.385
10
false
s2
| *a | Component without harness connected
(Quick Heater Assembly) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition s1-1 - s2-1 Always Below 1 Ω s1-2 - s2-2 Always Below 1 Ω s1-2 - s2-1 Always Below 1 Ω s1-3 - s2-2 Always Below 1 Ω
If the result is not as specified, replace the quick heater assembly.
