HEATING / AIR CONDITIONING BLOWER RESISTOR(for Front Air Conditioning System) REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 55642 1.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201902,201906,_58,_078375,_0380058,RM100000001FRU9_02_0019,201906,202310,_58,_078375,_0380058,RM100000001IHOZ_02_0019,202310,999999,_58,_078375,_0380058,RM100000002EPVY_02_0019,

Hide Display 58534E 2.REMOVE CENTER FLOOR CARPET COVER LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201902,201906,_58,_078375,_0380058,RM100000001FRU9_02_0026,201906,202310,_58,_078375,_0380058,RM100000001IHOZ_02_0026,202310,999999,_58,_078375,_0380058,RM100000002EPVY_02_0026,

Hide Display 3.REMOVE BLOWER RESISTOR

a.

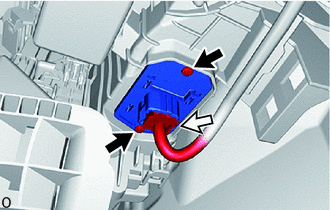

E400968C01

0,0 0,0 false

	Screw
	Connector

Disconnect the connector.

b.

Remove the 2 screws and blower resistor.
