HEATING / AIR CONDITIONING  REAR HEATER UNIT  REASSEMBLY


PROCEDURE

Hide 87212A 1.INSTALL REAR NO. 1 AIR DUCT (for LHD)

a.

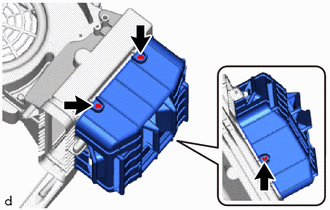

E415362

Install the rear No. 1 air duct with the 3 screws.


Hide 87107R 2.INSTALL REAR HEATER UNIT SUB-ASSEMBLY (for LHD)

a.

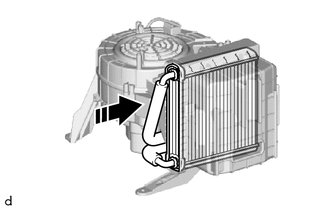

E416462C01
0,0 0,0 false
V113147

Install in this Direction


Install the rear heater unit sub-assembly as shown in the illustration.


Hide 87104R 3.INSTALL REAR HEATER BLOWER MOTOR SUB-ASSEMBLY (for LHD)

a.
E415360

Install the rear heater blower motor sub-assembly with the 3 screws.


b.

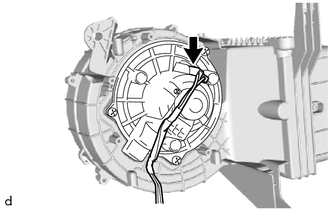

E415358

Connect the connector.

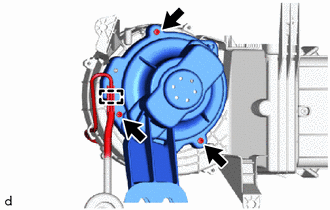

Hide 87114 4.INSTALL HEATER COVER (for LHD)

a.
E415356

Install the heater cover with the 3 screws.


b.

Attach the clamp.


c.

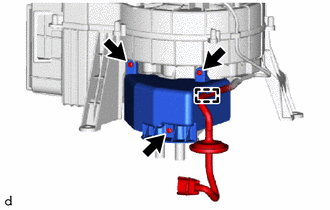

E416464

Install the heater cover with the 3 screws.


d.

Attach the clamp.


Hide 87114 5.INSTALL HEATER COVER (for LHD)

a.

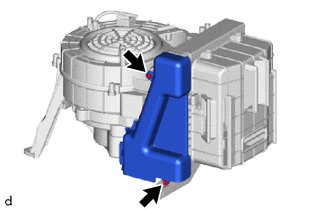

E415352

Install the heater cover with the 2 screws.


Hide 87256F 6.INSTALL REAR HEATER UNIT HEATER WATER OUTLET HOSE (for LHD)

a.

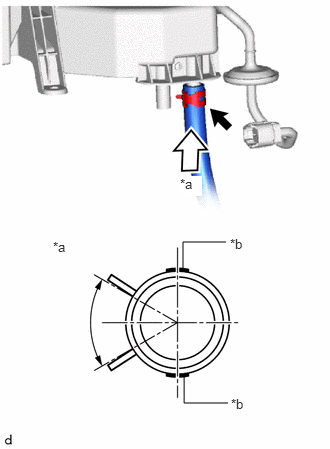

E416467C01
1.906,2.802 1.906,2.521 1.906,2.521 2.354,2.521 false 1.917,3.917 1.917,4.198 1.917,4.198 2.375,4.198 false 1.875,1.833 2.104,2.042 0.229,0.208 10 true *a 2.396,2.458 2.708,2.656 0.313,0.198 10 false *b 2.406,4.125 2.719,4.323 0.313,0.198 10 false *b 0.552,2.49 0.865,2.688 0.313,0.198 10 false *a
*a View A
*b Marking (Blue)


Install the rear heater unit heater water outlet hose with the marking and attach the clip within the area shown in the illustration.

NOTICE:
·

Do not apply excessive force to the rear heater unit heater water outlet hose.

·

Make sure the rear heater unit heater water outlet hose is securely inserted to the stopper. However, if the end of the rear heater unit heater water outlet hose is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.

·

Connect the rear heater unit heater water outlet hose so that its marking faces the top of the vehicle.




b.

Make sure to install the hose clip within the range shown in the illustration.

NOTICE:

Make sure that the hose clamps do not contact each other.



Hide 87255F 7.INSTALL REAR HEATER UNIT HEATER WATER INLET HOSE (for LHD)

a.
E416465C01

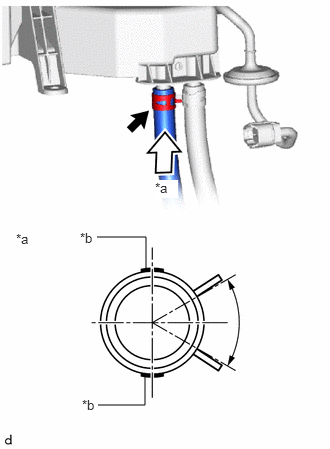

1.521,2.813 1.521,2.469 1.521,2.469 1.01,2.469 false 1.51,3.906 1.51,4.219 1.51,4.219 1.021,4.219 false 1.615,1.875 1.854,2.063 0.24,0.188 10 true *a 0.833,2.396 1.146,2.594 0.313,0.198 10 false *b 0.854,4.135 1.167,4.333 0.313,0.198 10 false *b 0.167,2.406 0.479,2.604 0.313,0.198 10 false *a
*a View A
*b Marking (Pink)


Install the rear heater unit heater water inlet hose with the marking and attach the clip within the area shown in the illustration.

NOTICE:
·

Do not apply excessive force to the rear heater unit heater water inlet hose.

·

Make sure the rear heater unit heater water inlet hose is securely inserted to the stopper. However, if the end of the rear heater unit heater water inlet hose is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.

·

Connect the rear heater unit heater water inlet hose so that its marking faces the top of the vehicle.




b.

Make sure to install the hose clip within the range shown in the illustration.

NOTICE:

Make sure that the hose clamps do not contact each other.



Hide 87138R 8.INSTALL REAR HEATER BLOWER RESISTOR (for LHD)

a.

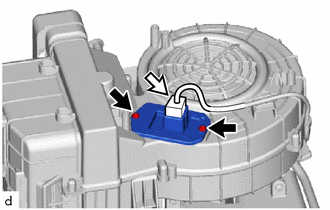

E415346C01
0,0 0,0 false
V100135

Screw
V100136

Connector


Install the rear heater blower resistor with the 2 screws.


b.

Connect the connector.


Hide 87114 9.INSTALL HEATER COVER (for LHD)

a.

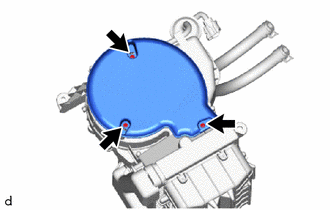

E415344

Install the heater cover with the 3 screws.


Hide 87212A 10.INSTALL REAR NO. 1 AIR DUCT (for RHD)

a.

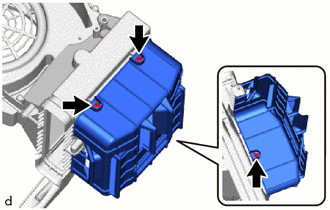

E415363

Install the rear No. 1 air duct with the 3 screws.


Hide 87104R 11.INSTALL REAR HEATER BLOWER MOTOR SUB-ASSEMBLY (for RHD)

a.

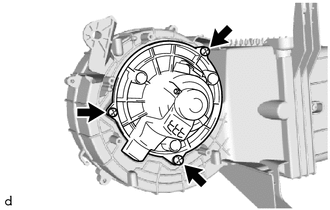

E415361

Install the rear heater blower motor sub-assembly with the 3 screws.


b.
E415359

Connect the connector.


Hide 87114 12.INSTALL HEATER COVER (for RHD)

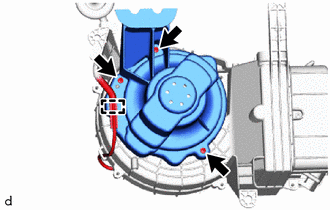

a.
E415357

Install the heater cover with the 3 screws.


b.

Attach the clamp.


Hide 87107R 13.INSTALL REAR HEATER UNIT SUB-ASSEMBLY (for RHD)

a.

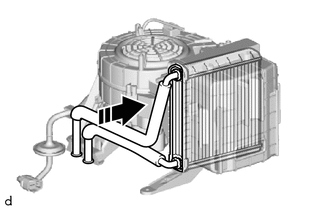

E416463C01
0,0 0,0 false
V113147

Install in this Direction


Install the rear heater unit sub-assembly as shown in the illustration.


Hide 87114 14.INSTALL HEATER COVER (for RHD)

a.

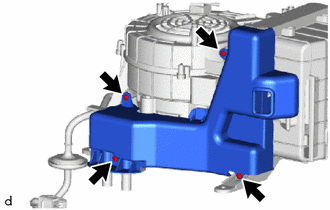

E415353

Install the heater cover with the 4 screws.


Hide 87256F 15.INSTALL REAR HEATER UNIT HEATER WATER OUTLET HOSE (for RHD)

a.

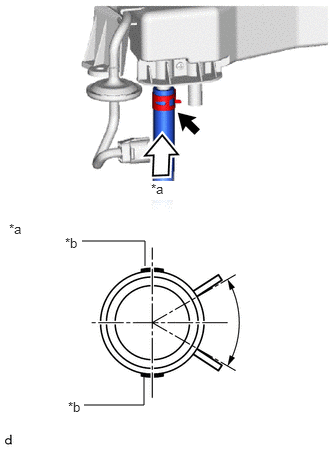

E416468C01
1.51,2.771 1.51,2.51 1.51,2.51 0.854,2.51 false 1.5,3.927 1.5,4.219 1.5,4.219 0.875,4.219 false 1.573,1.885 1.823,2.083 0.25,0.198 10 true *a 0.677,2.448 0.99,2.646 0.313,0.198 10 false *b 0.708,4.156 1.021,4.354 0.313,0.198 10 false *b 0.094,2.302 0.406,2.5 0.313,0.198 10 false *a
*a View A
*b Marking (Blue)


Install the rear heater unit heater water outlet hose with the marking and attach the clip within the area shown in the illustration.

NOTICE:
·

Do not apply excessive force to the rear heater unit heater water outlet hose.

·

Make sure the rear heater unit heater water outlet hose is securely inserted to the stopper. However, if the end of the rear heater unit heater water outlet hose is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.

·

Connect the rear heater unit heater water outlet hose so that its marking faces the top of the vehicle.




b.

Make sure to install the hose clip within the range shown in the illustration.

NOTICE:

Make sure that the hose clamps do not contact each other.



Hide 87255F 16.INSTALL REAR HEATER UNIT HEATER WATER INLET HOSE (for RHD)

a.
E416466C01

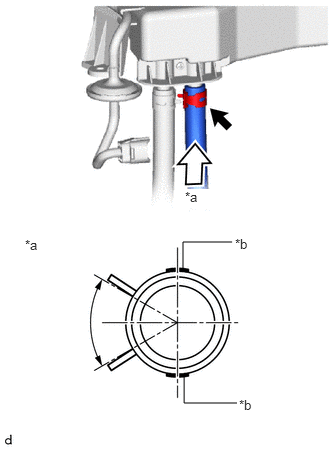

1.906,2.792 1.906,2.521 1.906,2.521 2.417,2.521 false 1.917,3.906 1.917,4.198 1.917,4.198 2.469,4.198 false 1.927,1.969 2.24,2.167 0.313,0.198 10 true *a 2.448,2.458 2.76,2.656 0.313,0.198 10 false *b 2.49,4.135 2.802,4.333 0.313,0.198 10 false *b 0.26,2.469 0.573,2.667 0.313,0.198 10 false *a
*a View A
*b Marking (Pink)


Install the rear heater unit heater water inlet hose with the marking and attach the clip within the area shown in the illustration.

NOTICE:
·

Do not apply excessive force to the rear heater unit heater water inlet hose.

·

Make sure the rear heater unit heater water inlet hose is securely inserted to the stopper. However, if the end of the heater water inlet hose is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.

·

Connect the rear heater unit heater water inlet hose so that its marking faces the top of the vehicle.




b.

Make sure to install the hose clip within the range shown in the illustration.

NOTICE:

Make sure that the hose clamps do not contact each other.



Hide 87138R 17.INSTALL REAR HEATER BLOWER RESISTOR (for RHD)

a.

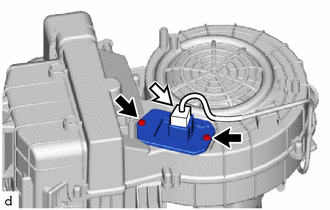

E415347C01
0,0 0,0 false
V100135

Screw
V100136

Connector


Install the rear heater blower resistor with the 2 screws.


b.

Connect the connector.


Hide 87114 18.INSTALL HEATER COVER (for RHD)

a.

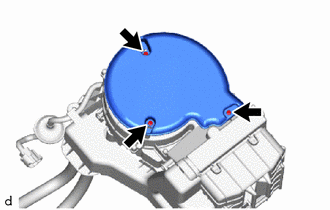

E415345

Install the heater cover with the 3 screws.
