HEATING / AIR CONDITIONING  REAR HEATER UNIT  INSTALLATION

3.021,1.302 3.229,1.531 0.208,0.229 10 true *1

*1

Grommet

Install the rear heater assembly with the 3 screws.

2.479,4.115 2.479,4.385 true 1.094,4.125 1.094,4.396 true 1.76,2.927 1.979,3.125 0.219,0.198 10 true *a 1.021,4.417 1.271,4.615 0.25,0.198 10 false *b 2.427,4.406 2.74,4.604 0.313,0.198 10 false *c 0.177,3.25 0.49,3.448 0.313,0.198 10 false *a

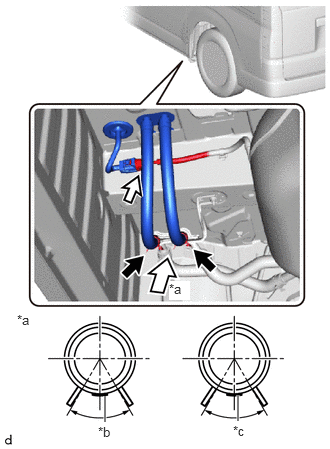

*a	View A
*b	Marking (Blue)
*c	Marking (Pink)

Connect the heater water outlet hose and heater water inlet hose with the marking facing left and attach the clip within the area shown in the illustration.

NOTICE:

·

Do not apply excessive force to the heater water outlet hose and heater water inlet hose.

·

Make sure the heater water outlet hose and heater water inlet hose is securely inserted to the stopper. However, if the end of the heater water outlet hose and heater water inlet hose is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.

·

Connect the heater water outlet hose and heater water inlet hose so that its marking faces the top of the vehicle.

3.073,1.281 3.292,1.5 0.219,0.219 10 true *1

*1

Grommet

Install the rear heater assembly with the 3 screws.

1.094,4.115 1.094,4.396 true 2.49,4.125 2.49,4.406 true 1.49,1.813 1.719,2.01 0.229,0.198 10 true *a 1.031,4.417 1.344,4.573 0.313,0.156 10 false *b 2.427,4.417 2.74,4.573 0.313,0.156 10 false *c 0.146,3.219 0.458,3.417 0.313,0.198 10 false *a

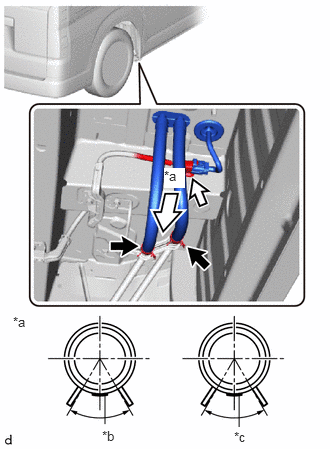

*a	View A
*b	Marking (Blue)
*c	Marking (Pink)

Connect the heater water outlet hose and heater water inlet hose with the marking facing left and attach the clip within the area shown in the illustration.

NOTICE:

·

Do not apply excessive force to the heater water outlet hose and heater water inlet hose.

·

Make sure the heater water outlet hose and heater water inlet hose is securely inserted to the stopper. However, if the end of the heater water outlet hose and heater water inlet hose is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.

·

Connect the heater water outlet hose and heater water inlet hose so that its marking faces the top of the vehicle.

0.219,1.281 0.427,1.5 0.208,0.219 10 true *1

*1

Grommet

Install the rear heater assembly with the 3 screws.

1.094,4.115 1.094,4.417 false 2.49,4.125 2.49,4.448 false 1.708,1.75 1.927,1.958 0.219,0.208 10 true *a 1.063,4.458 1.375,4.656 0.313,0.198 10 false *b 2.438,4.469 2.75,4.667 0.313,0.198 10 false *c 0.135,3.271 0.448,3.469 0.313,0.198 10 false *a

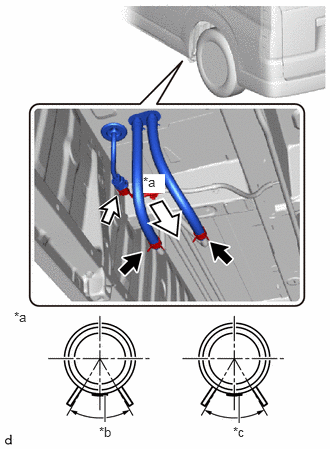

*a	View A
*b	Marking (Pink)
*c	Marking (Blue)

Connect the heater water outlet hose and heater water inlet hose with the marking facing left and attach the clip within the area shown in the illustration.

NOTICE:

·

Do not apply excessive force to the heater water outlet hose and heater water inlet hose.

·

Make sure the heater water outlet hose and heater water inlet hose is securely inserted to the stopper. However, if the end of the heater water outlet hose and heater water inlet hose is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.

·

Connect the heater water outlet hose and heater water inlet hose so that its marking faces the top of the vehicle.

0.219,1.281 0.406,1.49 0.188,0.208 10 true *1

*1

Grommet

Install the rear heater assembly with the 3 screws.

1.104,4.125 1.104,4.448 true 2.5,4.115 2.5,4.438 true 1.844,2.083 2.063,2.292 0.219,0.208 10 true *a 1.042,4.458 1.354,4.656 0.313,0.198 10 false *b 2.438,4.458 2.75,4.656 0.313,0.198 10 false *c 0.115,3.26 0.427,3.458 0.313,0.198 10 false *a

*a	View A
*b	Marking (Orange)
*c	Marking (Blue)

Connect the heater water outlet hose and heater water inlet hose with the marking facing left and attach the clip within the area shown in the illustration.

NOTICE:

·

Do not apply excessive force to the heater water outlet hose and heater water inlet hose.

·

Make sure the heater water outlet hose and heater water inlet hose is securely inserted to the stopper. However, if the end of the heater water outlet hose and heater water inlet hose is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.

·

Connect the heater water outlet hose and heater water inlet hose so that its marking faces the top of the vehicle.
