RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384877 REAR HEATER UNIT A

HEATING / AIR CONDITIONING  REAR HEATER UNIT  REMOVAL


PROCEDURE

Hide 87120 2.REMOVE REAR HEATER ASSEMBLY (for LHD)

a.

for Standard Roof:

i.

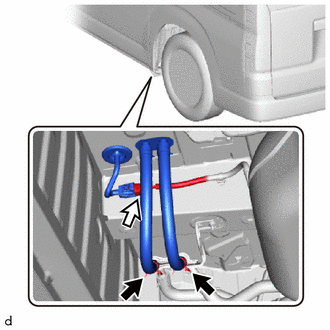

E415336

Disconnect the connector.


ii.

Using pliers, grip the claw of the clip and slide the clip to disconnect the heater water inlet hose.

NOTICE:
·

Do not apply excessive force to the heater water inlet hose.

·

Prepare a drain pan or cloth in case the coolant leaks.




iii.

Using pliers, grip the claw of the clip and slide the clip to disconnect the heater water outlet hose.

NOTICE:
·

Do not apply excessive force to the heater water outlet hose.

·

Prepare a drain pan or cloth in case the coolant leaks.




iv.

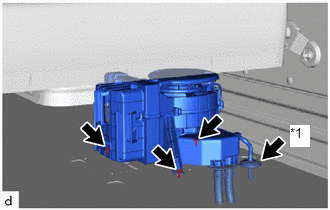

E415340C01
3.021,1.302 3.229,1.531 0.208,0.229 10 true *1
*1 Grommet


Remove the grommet and disconnect the wire harness.


v.

Remove the 3 screws and rear heater assembly.



b.

for High Roof:

i.
E415337

Disconnect the connector.


ii.

Using pliers, grip the claw of the clip and slide the clip to disconnect the heater water inlet hose.

NOTICE:
·

Do not apply excessive force to the heater water inlet hose.

·

Prepare a drain pan or cloth in case the coolant leaks.




iii.

Using pliers, grip the claw of the clip and slide the clip to disconnect the heater water outlet hose.

NOTICE:
·

Do not apply excessive force to the heater water outlet hose.

·

Prepare a drain pan or cloth in case the coolant leaks.




iv.

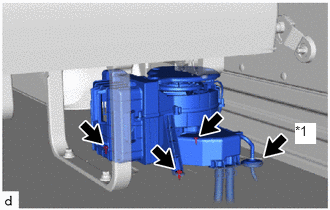

E415341C01
3.073,1.281 3.292,1.5 0.219,0.219 10 true *1
*1 Grommet


Remove the grommet and disconnect the wire harness.


v.

Remove the 3 screws and rear heater assembly.



Hide 87120 3.REMOVE REAR HEATER ASSEMBLY (for RHD)

a.

for Standard Roof:

i.

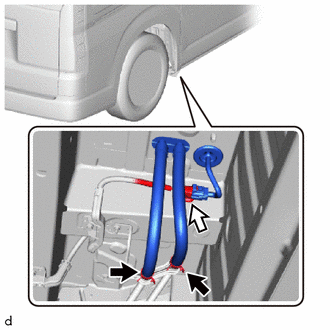

E415338

Disconnect the connector.


ii.

Using pliers, grip the claw of the clip and slide the clip to disconnect the heater water inlet hose.

NOTICE:
·

Do not apply excessive force to the heater water inlet hose.

·

Prepare a drain pan or cloth in case the coolant leaks.




iii.

Using pliers, grip the claw of the clip and slide the clip to disconnect the heater water outlet hose.

NOTICE:
·

Do not apply excessive force to the heater water outlet hose.

·

Prepare a drain pan or cloth in case the coolant leaks.




iv.

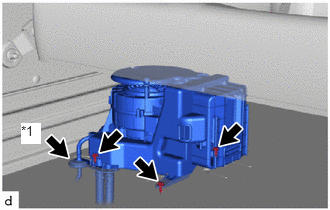

E415342C01
0.219,1.281 0.427,1.5 0.208,0.219 10 true *1
*1 Grommet


Remove the grommet and disconnect the wire harness.


v.

Remove the 3 screws and rear heater assembly.



b.

for High Roof:

i.

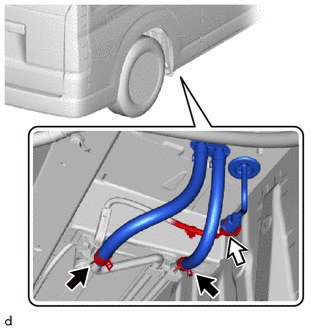

E415339

Disconnect the connector.


ii.

Using pliers, grip the claw of the clip and slide the clip to disconnect the heater water inlet hose.

NOTICE:
·

Do not apply excessive force to the heater water inlet hose.

·

Prepare a drain pan or cloth in case the coolant leaks.




iii.

Using pliers, grip the claw of the clip and slide the clip to disconnect the heater water outlet hose.

NOTICE:
·

Do not apply excessive force to the heater water outlet hose.

·

Prepare a drain pan or cloth in case the coolant leaks.




iv.

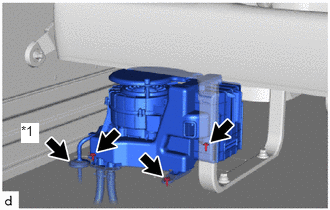

E415343C01
0.219,1.281 0.406,1.49 0.188,0.208 10 true *1
*1 Grommet


Remove the grommet and disconnect the wire harness.


v.

Remove the 3 screws and rear heater assembly.
