RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384873 REFRIGERANT LINE(for LHD) A

HEATING / AIR CONDITIONING  REFRIGERANT LINE(for LHD)  REMOVAL


PROCEDURE

Hide 2.REMOVE PIPING CLAMP

a.

w/o Sub-cool Accelerator:

i.

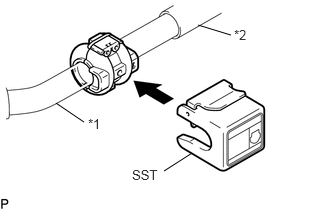

E273283C02
1.708,1.781 2,1.594 false 0.875,1.271 0.583,1.073 false 2.063,0.26 2.406,0.365 false 1.375,1.74 1.813,2.01 0.438,0.271 10 false SST 0.917,1.208 1.229,1.406 0.313,0.198 10 false *1 2.438,0.281 2.75,0.479 0.313,0.198 10 false *2
*1 Air Conditioner Tube Assembly (Condenser Pipe)
*2 Cooler Refrigerant Liquid Pipe A


Install SST to the piping clamp as shown in the illustration.

SST
09870-00025


ii.

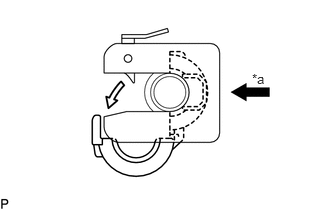

E273284C02
2.625,0.74 2.938,0.938 0.313,0.198 10 false *a
*a Push in


Hold the air conditioner tube assembly (condenser pipe) and cooler refrigerant liquid pipe A with each hand and push in SST with both thumbs.

NOTICE:

Do not apply excessive force to the air conditioner tube assembly (condenser pipe) or cooler refrigerant liquid pipe A as they may bend.



iii.

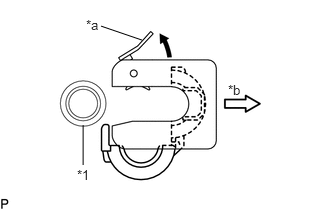

E273285C02
1.052,0.271 1.479,0.417 false 0.865,1.719 0.865,1.302 false 0.802,1.74 1.115,1.938 0.313,0.198 10 false *1 0.896,0.177 1.208,0.375 0.313,0.198 10 false *a 2.375,0.854 2.688,1.052 0.313,0.198 10 false *b
*1 Cooler Refrigerant Liquid Pipe A
*a Stopper
*b Pull Off


Raise the stopper of SST and remove SST and the piping clamp together from the cooler refrigerant liquid pipe A.


iv.

Remove the piping clamp from SST.


v.

Remove the cooler refrigerant liquid pipe A from the air conditioner tube assembly (condenser pipe).


vi.

Remove the 2 O-rings from the air conditioner tube assembly (condenser pipe).

NOTICE:

Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.




b.

w/ Sub-cool Accelerator:

i.
E273283C07
1.708,1.781 2,1.594 false 0.875,1.271 0.583,1.073 false 2.063,0.26 2.406,0.365 false 1.375,1.74 1.813,2.01 0.438,0.271 10 false SST 0.917,1.208 1.229,1.406 0.313,0.198 10 false *1 2.438,0.281 2.75,0.479 0.313,0.198 10 false *2
*1 Air Conditioner Tube Assembly (Condenser Pipe)
*2 Air Conditioner Tube Assembly (Front Cooler Pipe)


Install SST to the piping clamp as shown in the illustration.

SST
09870-00025


ii.
E273284C02
2.625,0.74 2.938,0.938 0.313,0.198 10 false *a
*a Push in


Hold the air conditioner tube assembly (condenser pipe) and air conditioner tube assembly (front cooler pipe) with each hand and push in SST with both thumbs.

NOTICE:

Do not apply excessive force to the air conditioner tube assembly (condenser pipe) or air conditioner tube assembly (front cooler pipe) as they may bend.



iii.
E273285C02
1.052,0.271 1.479,0.417 false 0.865,1.719 0.865,1.302 false 0.802,1.74 1.115,1.938 0.313,0.198 10 false *1 0.896,0.177 1.208,0.375 0.313,0.198 10 false *a 2.375,0.854 2.688,1.052 0.313,0.198 10 false *b
*1 Air Conditioner Tube Assembly (Front Cooler Pipe)
*a Stopper
*b Pull Off


Raise the stopper of SST and remove SST and the piping clamp together from the air conditioner tube assembly (front cooler pipe).


iv.

Remove the piping clamp from SST.


v.

Remove air conditioner tube assembly (front cooler pipe) the from the air conditioner tube assembly (condenser pipe).


vi.

Remove the 2 O-rings from the air conditioner tube assembly (condenser pipe).

NOTICE:

Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.
