WINDOW / GLASS WINDSHIELD DEICER SWITCH INSPECTION
PROCEDURE
84794

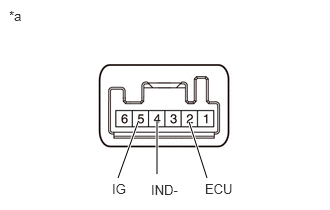

1.INSPECT FRONT WIPER DEICER SWITCH
a.
1.229,1.854 1.438,1.271
true
2.156,1.854 1.969,1.271
true
1.635,1.813 1.635,1.26
true
0.094,0.083 0.406,0.24
0.313,0.156
10
false
*a
1.167,1.885 1.625,2.083
0.458,0.198
10
false
IG
2.135,1.885 2.594,2.083
0.458,0.198
10
false
ECU
1.573,1.896 2.031,2.094
0.458,0.198
10
false
IND-
| *a | Component without harness connected
(Front Wiper Deicer Switch) |
Inspect the front wiper deicer switch.
i.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Switch Condition Specified Condition If the result is not as specified, replace the front wiper deicer switch.
5 (IG) - 2 (ECU) Front wiper deicer switch off 10 kΩ or higher Front wiper deicer switch on Below 1 Ω
ii.
Check the indicator light illuminates.
- OK:
Battery Connection Specified Condition If the result is not as specified, replace the front wiper deicer switch.
Battery positive (+) → 5 (IG)
Battery negative (-) → 4 (IND-)Illuminates
b.
1.24,1.271 0.885,1.615
true
2.177,1.292 2.583,1.635
true
0.729,1.656 1.344,1.854
0.615,0.198
10
false
ILL+
2.552,1.667 3.167,1.865
0.615,0.198
10
false
ILL-
0.094,0.104 0.406,0.302
0.313,0.198
10
false
*a
| *a | Component without harness connected
(Front Wiper Deicer Switch) |
Check the illumination.
i.
Apply battery voltage to the connector and check the illumination conditions.
- OK:
Battery Connection Specified Condition If the result is not as specified, replace the front wiper deicer switch.
Battery positive (+) → 6 (ILL+)
Battery negative (-) → 1 (ILL-)Illuminates
