Vehicle Exterior
_079318
WINDOW / GLASS
_0384712
WINDSHIELD DEICER SYSTEM
R

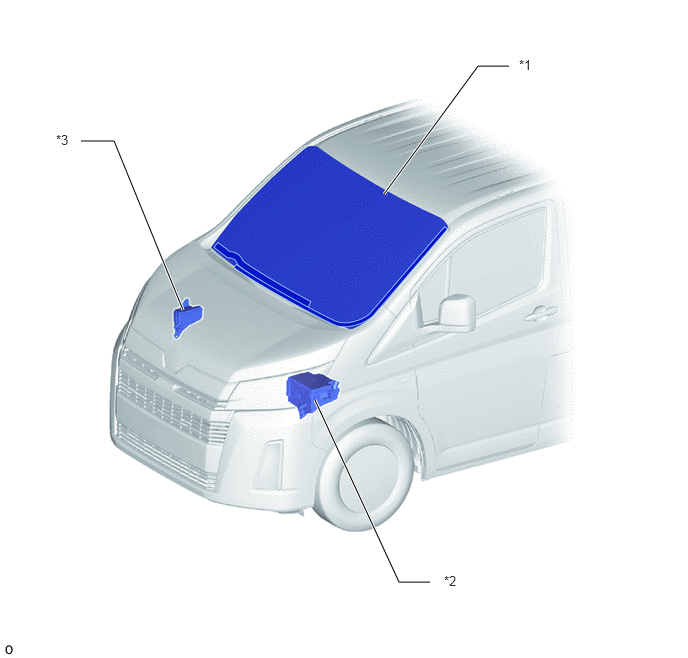

WINDOW / GLASS WINDSHIELD DEICER SYSTEM PARTS LOCATION
ILLUSTRATION
3.281,4.167 4.156,6.063
4.156,6.063 4.479,6.063
true
1.906,3.229 1.188,1.469
1.188,1.469 0.844,1.469
true
4,2.021 4.979,0.688
4.979,0.688 5.302,0.688
true
5.406,0.594 5.719,0.75
0.313,0.156
10
false
*1
4.625,5.969 4.938,6.125
0.313,0.156
10
false
*2
0.583,1.375 0.896,1.531
0.313,0.156
10
false
*3
| *1 | WINDSHIELD GLASS
- WINDSHIELD DEICER WIRE |
*2 | NO. 1 ENGINE ROOM RELAY BLOCK
- ECU-ALT NO.1 FUSE - DEICER FUSE |
| *3 | NO. 2 ENGINE ROOM RELAY BLOCK
- WINDSHIELD DEICER RELAY ASSEMBLY (FR DEICER) |
- | - |
ILLUSTRATION
0.885,5.969 1.229,5.969
1.229,5.969 1.646,4.854
true
0.625,2.104 0.969,2.104
0.969,2.104 1.542,4
true
5.104,1.281 4.708,1.281
4.708,1.281 3.927,3.292
true
4.677,6.177 4.313,6.177
4.313,6.177 3.594,4.281
true
5.313,5.417 4.948,5.417
4.948,5.417 4.219,3.5
true
5.427,5.313 5.74,5.469
0.313,0.156
10
false
*1
5.229,1.188 5.542,1.344
0.313,0.156
10
false
*2
4.802,6.083 5.115,6.24
0.313,0.156
10
false
*3
0.375,2.01 0.688,2.167
0.313,0.156
10
false
*4
0.635,5.875 0.948,6.031
0.313,0.156
10
false
*5
| *1 | FRONT WIPER DEICER SWITCH
- INDICATOR LIGHT |
*2 | CENTER CLUSTER MODULE CONTROL ASSEMBLY |
| *3 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- A/C-IG1 NO.2 FUSE |
| *5 | DLC3 | - | - |
