WINDOW / GLASS  POWER WINDOW MASTER SWITCH  INSPECTION

1.958,1.781 1.656,1.313 true 0.917,1.792 1.271,1.313 true 0.125,0.125 0.438,0.323 0.313,0.198 10 false *a 1.896,1.823 2.51,2.021 0.615,0.198 10 false ILL+ 0.771,1.802 1.385,2 0.615,0.198 10 false ILL-

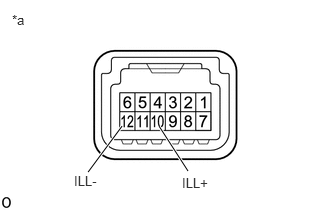

*a	Component without harness connected (Multiplex Network Master Switch Assembly)

Apply battery voltage to the connector and check the illumination conditions.

OK:

Battery Connection	Specified Condition
Battery positive (+) - 10 (ILL+) Battery negative (-) - 12 (ILL-)	Illuminates

If the result is not as specified, replace the multiplex network master switch assembly.
