RM35X0E _53 Suspension _078876 FRONT SUSPENSION _0384533 FRONT SHOCK ABSORBER N

FRONT SUSPENSION  FRONT SHOCK ABSORBER  DISPOSAL


PROCEDURE

Hide 48520 1.DISPOSE OF FRONT SHOCK ABSORBER ASSEMBLY

CAUTION:
C320205

·

Always use a cloth to prevent shards of metal flying about due to the release of pressurized gas.

·

Always wear safety glasses.



HINT:

The gas is colorless, odorless and non-poisonous.


a.
C412733N01
1.563,0.365 1.979,0.781 0.417,0.417 10 false A 2.438,0.365 2.854,0.781 0.417,0.417 10 false B

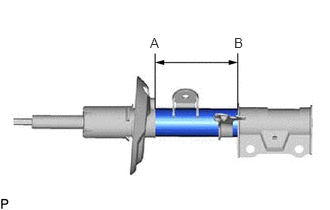

Place the front shock absorber horizontally with the piston rod extended, and using a hacksaw, make a hole between (A) and (B) shown in the illustration to discharge the gas inside.
