RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0384404 SIDE TURN SIGNAL LIGHT ASSEMBLY(for Front Fender) A

LIGHTING (EXT)  SIDE TURN SIGNAL LIGHT ASSEMBLY(for Front Fender)  REASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81730B 1.INSTALL SIDE TURN SIGNAL LIGHT BULB

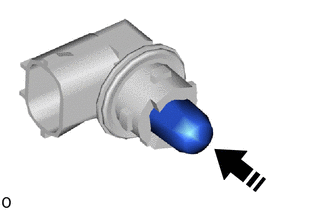

a.
E413212C01
0,0 0,0 false
V113147

Install in this Direction


Install the side turn signal light bulb to the bulb socket.

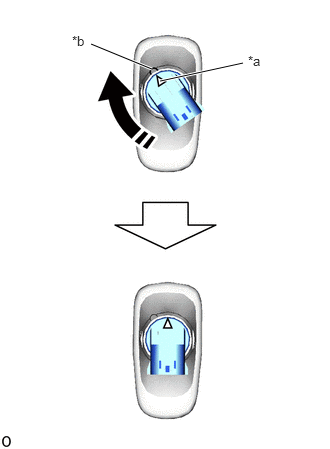

b.
E413210C01
2.531,0.656 1.667,0.844 true 1.583,0.719 0.948,0.458 true 2.583,0.552 2.896,0.708 0.313,0.156 10 false *a 0.75,0.344 1.063,0.5 0.313,0.156 10 false *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Align the matchmark of the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the bulb socket stops to install it.
