SIDE TURN SIGNAL LIGHT ASSEMBLY(for Front Fender)
A
LIGHTING (EXT) SIDE TURN SIGNAL LIGHT ASSEMBLY(for Front Fender) DISASSEMBLY
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
81730B
1.REMOVE SIDE TURN SIGNAL LIGHT BULB
a.
1.208,1.208 1.74,0.781
true
0.99,3.104 1.594,3.385
true
1.021,1.167 1.333,1.323
0.313,0.156
10
false
*a
0.813,2.99 1.021,3.188
0.208,0.198
10
false
*b
| *a | Matchmark |
| *b | Unlock Position Mark |
|
Turn in this Direction |

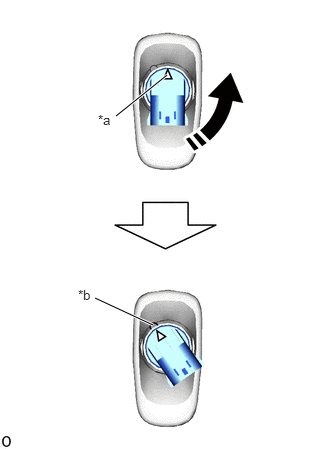

Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the bulb socket.
b.
0,0 0,0
false
|
|
Remove in this Direction |

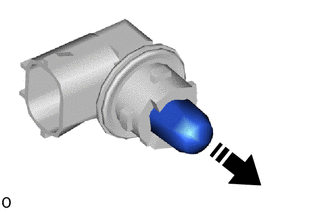

Remove the side turn signal light bulb from the bulb socket.
