RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0384444 AUTOMATIC HIGH BEAM MAIN SWITCH A

LIGHTING (EXT) AUTOMATIC HIGH BEAM MAIN SWITCH INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 84153 1.INSTALL AUTO HIGH BEAM SWITCH

a.

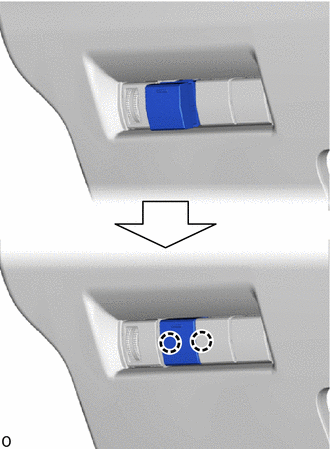

E413275

Attach the claw to install the auto high beam switch.

Hide Display 55432D 2.INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0035,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0035,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0035,

Hide Display 55641 3.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0038,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0038,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0038,

Hide Display 55318C 4.INSTALL INSTRUMENT SIDE PANEL LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0040,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0040,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0040,

Hide Display 55011A 5.INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0042,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0042,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0042,

Hide Display 55631A 6.INSTALL NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0077,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0077,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0077,

Hide Display 62112 7.INSTALL COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0045,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0045,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0045,

Hide Display 67914B 8.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0049,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0049,202310,999999,_58,_078375,_0381233,RM100000002EPY6_01_0049,

Hide Display 67912A 9.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0050,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0050,202310,999999,_58,_078375,_0381233,RM100000002EPY6_01_0050,
