RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0384442 HEADLIGHT DIMMER SWITCH G

LIGHTING (EXT)  HEADLIGHT DIMMER SWITCH  INSPECTION


PROCEDURE

Hide 84329 1.INSPECT TURN SIGNAL SWITCH (for LHD)

a.

Inspect the light control switch.

i.

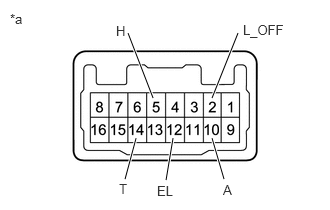

E361302C08
1.417,1.438 1.302,1.865 true 2.208,1.438 2.333,1.865 true 1.333,0.344 1.594,1.021 true 2.479,0.344 2.208,1.021 true 1.802,1.438 1.729,1.875 true 2.531,0.229 3.01,0.406 0.479,0.177 10 false L_OFF 1.635,1.906 1.948,2.104 0.313,0.198 10 false EL 1.208,0.24 1.438,0.427 0.229,0.188 10 false H 2.323,1.896 2.531,2.073 0.208,0.177 10 false A 1.24,1.885 1.406,2.063 0.167,0.177 10 false T 0.104,0.115 0.417,0.271 0.313,0.156 10 false *a
*a Component without harness connected
(Turn Signal Switch)


Measure the resistance according to the value (s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition

If the result is not as specified, replace the turn signal switch.

2 (L_OFF) - 12 (EL) Light control switch off Below 1 Ω
10 (A) - 12 (EL) Light control switch AUTO position
14 (T) - 12 (EL) Light control switch TAIL position
5 (H) - 12 (EL) Light control switch HEAD position




b.

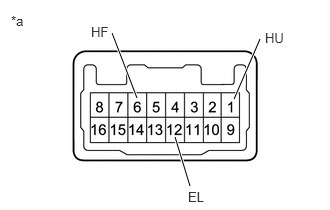

E361302C09
2.708,0.406 2.438,1.031 true 1.167,0.344 1.427,1.021 true 1.823,1.427 1.979,1.938 true 1.958,1.969 2.271,2.146 0.313,0.177 10 false EL 0.948,0.25 1.208,0.406 0.26,0.156 10 false HF 2.76,0.313 3.031,0.479 0.271,0.167 10 false HU 0.115,0.135 0.427,0.292 0.313,0.156 10 false *a
*a Component without harness connected
(Turn Signal Switch)


Inspect the headlight dimmer switch.

i.

Measure the resistance according to the value (s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition

If the result is not as specified, replace the turn signal switch.

6 (HF) - 12 (EL) Headlight dimmer switch flash position Below 1 Ω
1 (HU) - 12 (EL) Headlight dimmer switch high position Below 1 Ω




c.

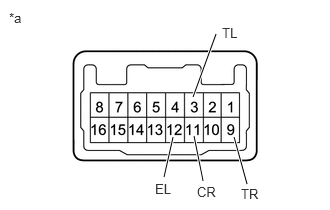

E361302C89
2.25,0.354 2.01,1.01 true 1.802,1.427 1.708,1.844 true 2.021,1.417 2.115,1.885 true 2.573,1.917 2.438,1.427 true 2.313,0.26 2.563,0.406 0.25,0.146 10 false TL 1.615,1.885 1.927,2.083 0.313,0.198 10 false EL 2.052,1.917 2.365,2.094 0.313,0.177 10 false CR 2.51,1.938 2.771,2.115 0.26,0.177 10 false TR 0.094,0.104 0.406,0.26 0.313,0.156 10 false *a
*a Component without harness connected
(Turn Signal Switch)


Inspect the turn signal light switch.

i.

Measure the resistance according to the value (s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition

If the result is not as specified, replace the turn signal switch.

9 (TR) - 12 (EL) Turn signal switch neutral position 10 kΩ or higher
3 (TL) - 12 (EL)
9 (TR) - 12 (EL) Turn signal switch right turn position
(self cancel condition) 		Below 1 Ω
9 (TR) - 12 (EL) Turn signal switch right turn position
(cancel ratchet operation condition) 		Below 1 Ω
9 (TR) - 11 (CR)
11 (CR) - 12 (EL)
3 (TL) - 12 (EL) Turn signal switch left turn position
(self cancel condition) 		Below 1 Ω
3 (TL) - 12 (EL) Turn signal switch left turn position
(cancel ratchet operation condition) 		Below 1 Ω
3 (TL) - 11 (CR)
11 (CR) - 12 (EL)


HINT:
·

The self cancel condition indicates when the turn signal switch returns to the neutral position after releasing your hand from the switch (switch is operated within 6.3°).

·

The cancel ratchet operation condition indicates the condition when the turn signal switch does not return to the neutral position even after releasing your hand (switch operation is 10.5°).





d.

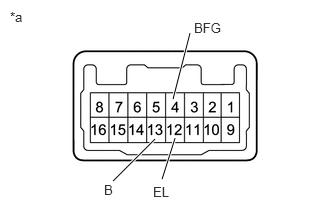

E361302C77
1.979,0.344 1.802,1.031 true 1.823,1.438 1.688,1.865 true 1.615,1.448 1.177,1.885 true 2.021,0.208 2.333,0.406 0.313,0.198 10 false BFG 1.594,1.917 1.854,2.135 0.26,0.219 10 false EL 0.104,0.094 0.417,0.25 0.313,0.156 10 false *a 1.083,1.896 1.24,2.094 0.156,0.198 10 false B
*a Component without harness connected
(Turn Signal Switch)


Inspect the fog light switch.

i.

Measure the resistance according to the value (s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition

If the result is not as specified, replace the turn signal switch.

4 (BFG) - 12 (EL) Front fog light switch off 10 kΩ or higher
Front fog light switch on Below 1 Ω
13 (B) - 12 (EL) Rear fog light switch off 10 kΩ or higher
Rear fog light switch on Below 1 Ω




Hide 84329 2.INSPECT TURN SIGNAL SWITCH (for RHD)

a.

Inspect the light control switch.

i.

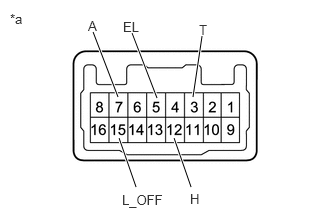

E361302C01
1.24,1.438 1.417,1.948 true 1.375,0.344 1.635,1.021 true 0.969,0.333 1.229,1.01 true 2.104,0.375 2.01,1.01 true 1.813,1.438 1.99,1.948 true 1.271,2 1.75,2.177 0.479,0.177 10 false L_OFF 1.281,0.198 1.594,0.396 0.313,0.198 10 false EL 1.979,1.99 2.208,2.177 0.229,0.188 10 false H 0.917,0.188 1.125,0.365 0.208,0.177 10 false A 2.073,0.229 2.24,0.406 0.167,0.177 10 false T 0.104,0.115 0.417,0.271 0.313,0.156 10 false *a
*a Component without harness connected
(Turn Signal Switch)


Measure the resistance according to the value (s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition

If the result is not as specified, replace the turn signal switch.

15 (L_OFF) - 5 (EL) Light control switch off Below 1 Ω
7 (A) - 5 (EL) Light control switch AUTO position
3 (T) - 5 (EL) Light control switch TAIL position
12 (H) - 5 (EL) Light control switch HEAD position




b.

Inspect the headlight dimmer switch.

i.

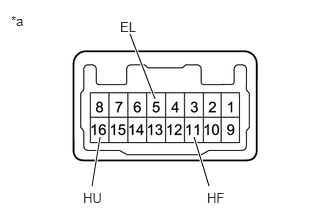

E361302C02
1.042,1.427 0.958,1.938 true 1.354,0.354 1.615,1.031 true 2.021,1.427 2.177,1.938 true 1.25,0.198 1.563,0.396 0.313,0.198 10 false EL 2.156,1.979 2.417,2.135 0.26,0.156 10 false HF 0.865,1.979 1.135,2.146 0.271,0.167 10 false HU 0.115,0.135 0.427,0.292 0.313,0.156 10 false *a
*a Component without harness connected
(Turn Signal Switch)


Measure the resistance according to the value (s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition

If the result is not as specified, replace the turn signal switch.

11 (HF) - 5 (EL) Headlight dimmer switch flash position Below 1 Ω
16 (HU) - 5 (EL) Headlight dimmer switch high position




c.

Inspect the turn signal light switch.

i.

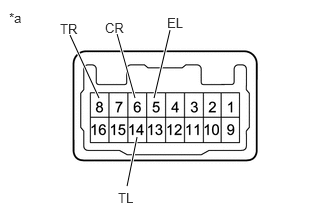

E361302C03
1.219,0.354 1.406,1.021 true 1.771,0.313 1.604,1.021 true 1.427,1.427 1.323,1.938 true 1.031,1.021 0.729,0.365 true 1.229,1.979 1.479,2.125 0.25,0.146 10 false TL 1.74,0.156 2.052,0.354 0.313,0.198 10 false EL 1.094,0.208 1.406,0.385 0.313,0.177 10 false CR 0.625,0.219 0.885,0.396 0.26,0.177 10 false TR 0.094,0.104 0.406,0.26 0.313,0.156 10 false *a
*a Component without harness connected
(Turn Signal Switch)


Measure the resistance according to the value (s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition

If the result is not as specified, replace the turn signal switch.

8 (TR) - 5 (EL) Turn signal switch neutral position 10 kΩ or higher
14 (TL) - 5 (EL)
8 (TR) - 5 (EL) Turn signal switch right turn position
(self cancel condition) 		Below 1 Ω
8 (TR) - 5 (EL) Turn signal switch right turn position
(cancel ratchet operation condition)
8 (TR) - 6 (CR)
6 (CR) - 5 (EL)
14 (TL) - 5 (EL) Turn signal switch left turn position
(self cancel condition)
14 (TL) - 5 (EL) Turn signal switch left turn position
(cancel ratchet operation condition)
14 (TL) - 6 (CR)
6 (CR) - 5 (EL)


HINT:
·

The self cancel condition indicates when the turn signal switch returns to the neutral position after releasing your hand from the switch (switch is operated within 6.3°).

·

The cancel ratchet operation condition indicates the condition when the turn signal switch does not return to the neutral position even after releasing your hand (switch operation is 10.5°).





d.

Inspect the fog light switch.

i.

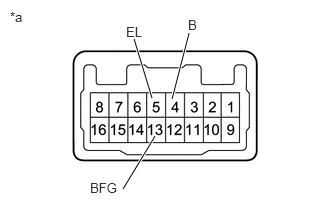

E361302C76
1.969,0.344 1.792,1.031 true 1.583,1.021 1.396,0.406 true 1.615,1.417 1.281,1.969 true 1.313,0.25 1.625,0.448 0.313,0.198 10 false EL 1.958,0.177 2.219,0.396 0.26,0.219 10 false B 0.104,0.094 0.417,0.25 0.313,0.156 10 false *a 0.938,1.875 1.344,2.063 0.406,0.188 10 false BFG
*a Component without harness connected
(Turn Signal Switch)


Measure the resistance according to the value (s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition

If the result is not as specified, replace the turn signal switch.

13 (BFG) - 5 (EL) Front fog light switch off 10 kΩ or higher
Front fog light switch on Below 1 Ω
4 (B) - 5 (EL) Rear fog light switch off 10 kΩ or higher
Rear fog light switch on Below 1 Ω
