Vehicle Exterior
_079256
LIGHTING (EXT)
_0384442
HEADLIGHT DIMMER SWITCH
A
LIGHTING (EXT) HEADLIGHT DIMMER SWITCH REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
PROCEDURE
45287
1.REMOVE LOWER STEERING COLUMN COVER
45286B
2.REMOVE UPPER STEERING COLUMN COVER
84329
3.REMOVE TURN SIGNAL SWITCH

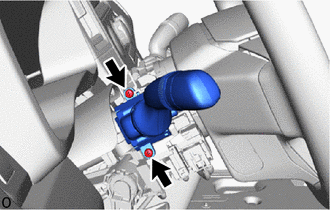

a.
Remove the 2 screws.

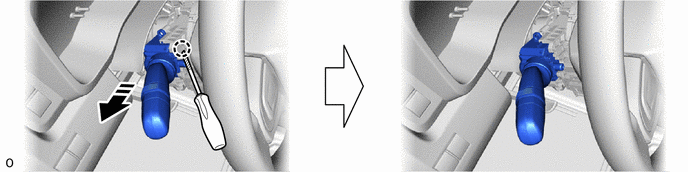

b.
Using a screwdriver, detach the claw and remove the turn signal switch.
- HINT:
-
Tape the screwdriver tip before use.
0,0 0,0
false
|
Protective Tape |
|
Remove in this Direction |
