LIGHTING (EXT) HEADLIGHT DIMMER SWITCH INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

Hide Display 84329 1.INSTALL TURN SIGNAL SWITCH

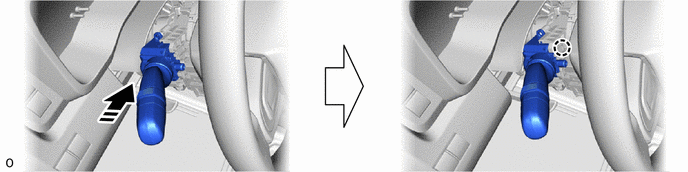

Align the connector of the turn signal switch with the connector of the steering switch housing and set the turn signal switch.

Push the turn signal switch to attach the claw to install it.

0,0 0,0 false

Install in this Direction

Install the 2 screws.

Hide Display 45286B 2.INSTALL UPPER STEERING COLUMN COVER

Hide Display 45287 3.INSTALL LOWER STEERING COLUMN COVER
