RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0384404 SIDE TURN SIGNAL LIGHT ASSEMBLY(for Front Fender) A

LIGHTING (EXT)  SIDE TURN SIGNAL LIGHT ASSEMBLY(for Front Fender)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81740 1.INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY LH

a.
E416348

Connect the connector.


b.
E413213C02
0,0 0,0 false
V113147

Install in this Direction

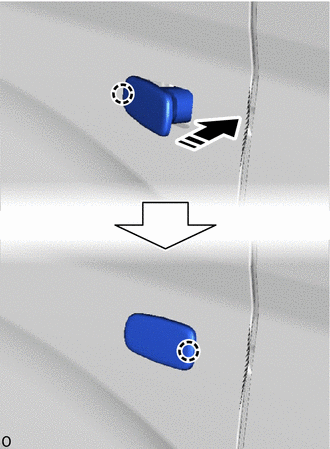

Attach the claw.


c.

Push the side turn signal light assembly LH to attach the claw to install it.
