General
_078672
MAINTENANCE
_0384286
CLEARANCE LIGHT BULB
A
MAINTENANCE CLEARANCE LIGHT BULB INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
81610F
1.INSTALL CLEARANCE LIGHT BULB
a.
0,0 0,0
false
|

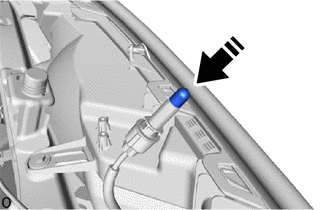

Install in this Direction |
Install the clearance light bulb to the clearance light socket.
b.
1.354,0.333 1.146,0.49
true
3.01,0.771 3.135,0.365
true
0.958,0.333 1.063,0.552
true
1.375,0.208 1.563,0.385
0.188,0.177
10
true
*b
0.854,0.135 1.042,0.313
0.188,0.177
10
true
*a
3.073,0.177 3.26,0.354
0.188,0.177
10
true
*c

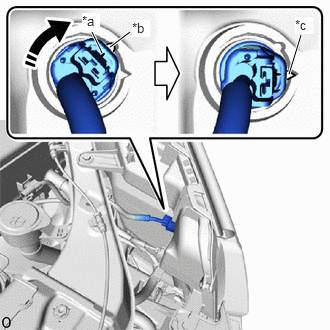

| *a | Matchmark |
| *b | Unlock Position Mark |
| *c | Lock Position Mark |
|
|
Turn in this Direction |
Align the matchmark of the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the lock position mark to connect the clearance light socket.
53106B
2.INSTALL RADIATOR COVER SUB-ASSEMBLY (for RH Side)
·
