RM35X0E _V1 General _078672 MAINTENANCE _0384286 CLEARANCE LIGHT BULB A

MAINTENANCE CLEARANCE LIGHT BULB REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 53106B 1.REMOVE RADIATOR COVER SUB-ASSEMBLY (for RH Side)

for 7GR-FKS:

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>RADIATOR>REMOVAL201902,201906,_51,_079310,_0386774,RM100000001GTQ8_01_0140,201906,999999,_51,_079310,_0386774,RM100000001IZPV_01_0140,

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (COOLING)>RADIATOR>REMOVAL201902,201906,_51,_079309,_0386771,RM100000001GTPV_01_0037,201906,202005,_51,_079309,_0386771,RM100000001IZPY_01_0037,202005,999999,_51,_079309,_0386771,RM100000001LT5Z_01_0037,

Hide Display 81610F 2.REMOVE CLEARANCE LIGHT BULB

3.021,0.344 2.896,0.49 true 1.427,1.094 1.177,0.771 true 1.448,1.094 1.677,1.313 0.229,0.219 10 true *a 3.031,0.156 3.26,0.375 0.229,0.219 10 true *b

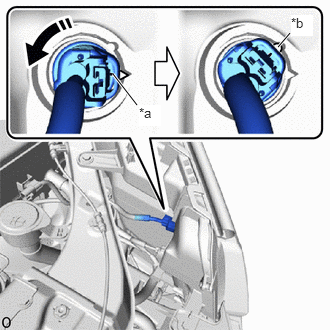

*a	Matchmark
*b	Unlock Position Mark
	Turn in this Direction

Insert a hand from the back side of the headlight, and then turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the clearance light socket.

0,0 0,0 false

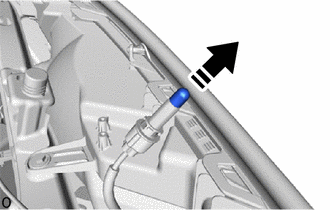

Remove in this Direction

Remove the clearance light bulb from the clearance light socket.
