RM35X0E _V1 General _078672 MAINTENANCE _0384288 SIDE TURN SIGNAL LIGHT BULB A

MAINTENANCE  SIDE TURN SIGNAL LIGHT BULB  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81730B 1.INSTALL SIDE TURN SIGNAL LIGHT BULB

a.

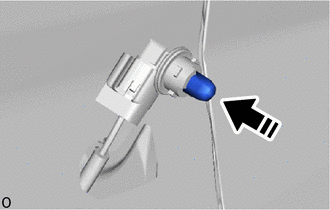

E413322C01
0,0 0,0 false
V113147

Install in this Direction


Install the side turn signal light bulb to the bulb socket.


b.

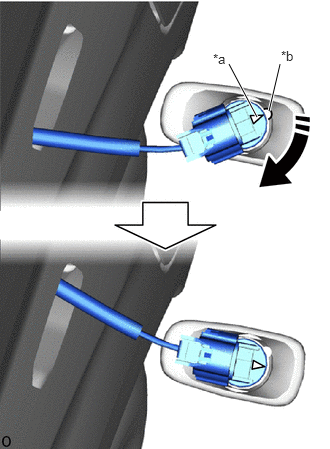

E413320C01
2.677,1.219 2.385,0.667 true 2.802,1.156 2.917,0.667 true 2.219,0.531 2.531,0.688 0.313,0.156 10 false *a 2.927,0.5 3.24,0.656 0.313,0.156 10 false *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Align the matchmark of the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the bulb socket stops to install it.


c.
E413213C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw.


d.

Push the side turn signal light assembly LH to attach the claw to install it.
