MAINTENANCE
_0384288
SIDE TURN SIGNAL LIGHT BULB
A
MAINTENANCE SIDE TURN SIGNAL LIGHT BULB REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
81730B
1.REMOVE SIDE TURN SIGNAL LIGHT BULB
a.

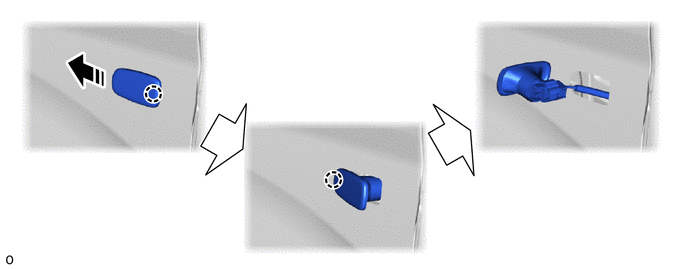

Slide the side turn signal light assembly LH toward the front of the vehicle to detach the claw.
b.
Raise the side turn signal light assembly LH to detach the claw and remove it.
0,0 0,0
false
|
Slide in this Direction | - | - |
c.
2.354,1.823 2.667,1.313
true
2.792,3.646 3.104,3.135
true
2.24,1.833 2.552,1.99
0.313,0.156
10
false
*a
3.094,3.01 3.302,3.208
0.208,0.198
10
false
*b

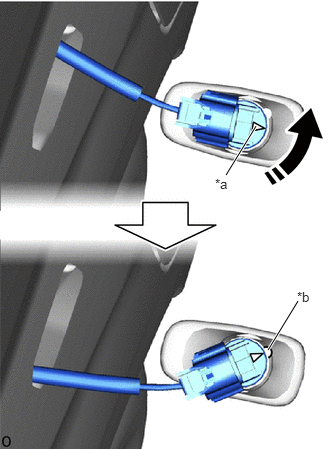

| *a | Matchmark |
| *b | Unlock Position Mark |
|
|
Turn in this Direction |
Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the bulb socket.
d.
0,0 0,0
false
|
|

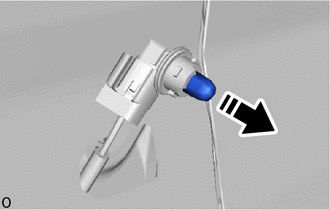

Remove in this Direction |
Remove the side turn signal light bulb from the bulb socket.
