MAINTENANCE  HEADLIGHT BULB  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81110B 1.INSTALL NO. 1 HEADLIGHT BULB

a.
E413297

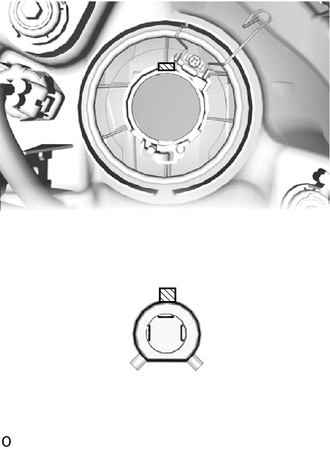

Align the shaded area of the No. 1 headlight bulb shown in the illustration with the shaded area of the headlight and insert the No. 1 headlight bulb into the headlight.

NOTICE:

Do not touch the glass part of the No. 1 headlight bulb.



b.
B544921C01
0,0 0,0 false
V113147

Lock in this Direction

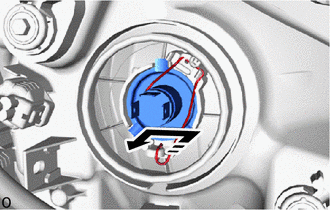

Lock the set spring by moving it in the direction indicated by the arrow in the illustration.


Hide 81144C 2.INSTALL HEADLIGHT SOCKET COVER

a.
E413295

Install the headlight socket cover.


b.
E413294

Connect the connector.
