MAINTENANCE  HEADLIGHT BULB  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81144C 1.REMOVE HEADLIGHT SOCKET COVER

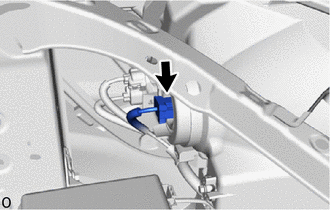

a.
E413294

Insert a hand from the back side of the headlight, and then disconnect the connector.

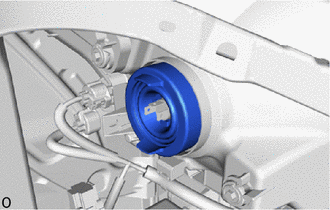

b.
E413295

Remove the headlight socket cover.


Hide 81110B 2.REMOVE NO. 1 HEADLIGHT BULB

a.
B544920C01
0,0 0,0 false
V113147

Release in this Direction


Push and pull up the set spring to release it.


b.

Remove the No. 1 headlight bulb.

NOTICE:

Do not touch the glass part of the No. 1 headlight bulb.
