MAINTENANCE  CLEARANCE LIGHT / DAYTIME RUNNING LIGHT BULB  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81510J 1.INSTALL DAYTIME RUNNING LIGHT BULB

a.
E413306C01
0,0 0,0 false
V113147

Install in this Direction

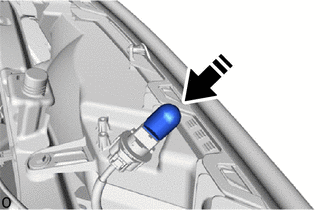

Install the daytime running light bulb to the daytime running light socket.


b.
E413309C01
1.573,1.198 0.583,1.01 true 2.021,0.792 1.781,0.302 true 0.594,1.302 0.406,1.146 true 1.615,1.104 1.813,1.281 0.198,0.177 10 true *a 1.625,0.167 1.813,0.344 0.188,0.177 10 false *c 0.635,1.24 0.823,1.417 0.188,0.177 10 true *b
*a Matchmark
*b Unlock Position Mark
*c Lock Position Mark
V113147

Turn in this Direction

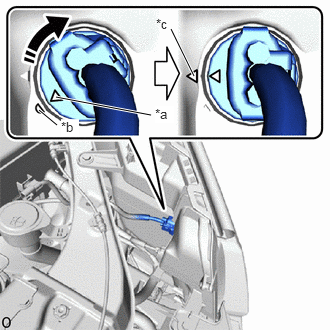

Align the matchmark of the daytime running light socket with the unlock position mark, and then turn the daytime running light socket clockwise until the lock position mark to connect the daytime running light socket.
