MAINTENANCE CLEARANCE LIGHT / DAYTIME RUNNING LIGHT BULB REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 53106B 1.REMOVE RADIATOR COVER SUB-ASSEMBLY (for RH Side)

for 7GR-FKS:

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>RADIATOR>REMOVAL201902,201906,_51,_079310,_0386774,RM100000001GTQ8_01_0140,201906,999999,_51,_079310,_0386774,RM100000001IZPV_01_0140,

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (COOLING)>RADIATOR>REMOVAL201902,201906,_51,_079309,_0386771,RM100000001GTPV_01_0037,201906,202005,_51,_079309,_0386771,RM100000001IZPY_01_0037,202005,999999,_51,_079309,_0386771,RM100000001LT5Z_01_0037,

Hide Display 81510J 2.REMOVE DAYTIME RUNNING LIGHT BULB

0.406,1.188 0.5,0.792 true 1.792,1.26 2.156,1.135 true 0.302,1.208 0.5,1.396 0.198,0.188 10 true *a 1.615,1.198 1.802,1.385 0.188,0.188 10 true *b

*a	Matchmark
*b	Unlock Position Mark
	Turn in this Direction

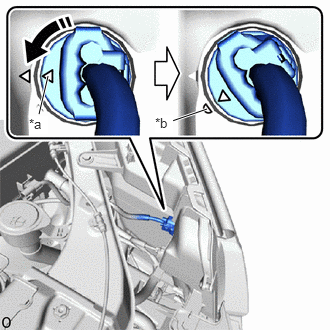

Insert a hand from the back side of the headlight, and then turn the daytime running light socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the daytime running light socket.

0,0 0,0 false

Remove in this Direction

Remove the daytime running light bulb from the daytime running light socket.
