RM35X0E _V1 General _078672 MAINTENANCE _0384281 FOG LIGHT BULB A

MAINTENANCE  FOG LIGHT BULB  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81210B 1.INSTALL FOG LIGHT BULB

a.

Open the front fender liner LH as shown in the illustration.

E413313


b.
E413317C01
0,0 0,0 false
V113147

Turn in this Direction

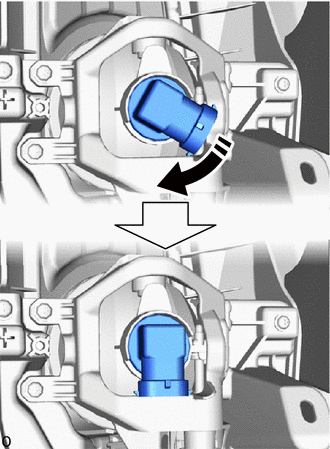

Insert the fog light bulb into place.

NOTICE:

Do not touch the glass part of the fog light bulb.



c.

Turn the fog light bulb clockwise until the bulb stops to install it.


d.
E413315

Connect the connector.


e.

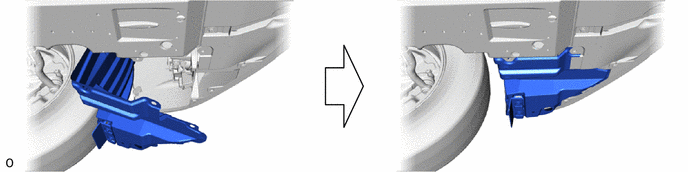

Return the front fender liner LH to its original position.

E413314


f.
E413312

Install the 5 clips.
