MAINTENANCE  FOG LIGHT BULB  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81210B 1.REMOVE FOG LIGHT BULB

a.

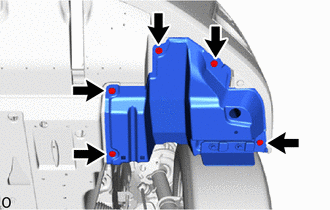

E413312

Remove the 5 clips.


b.

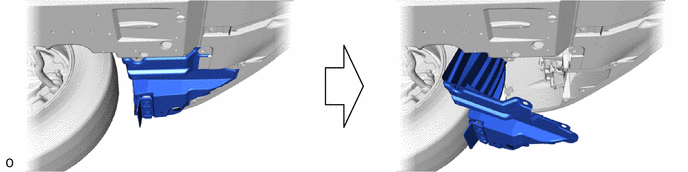

Open the front fender liner LH as shown in the illustration.

E413313


c.

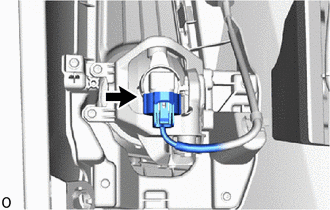

E413315

Insert a hand in the gap, and then disconnect the connector.


d.
E413316C01
0,0 0,0 false
V113147

Turn in this Direction


Turn the fog light bulb counterclockwise until the bulb stops and remove it.

NOTICE:

Do not touch the glass part of the fog light bulb.
