RM35X0E _57 Power Source / Network _079061 POWER DISTRIBUTION _0384098 INTEGRATION RELAY G

POWER DISTRIBUTION  INTEGRATION RELAY  INSPECTION


CAUTION / NOTICE / HINT

HINT:

Check that each fuse is operating normally, and then perform the inspection.


PROCEDURE

Hide 82641 1.INSPECT NO. 1 INTEGRATION RELAY (for 7GR-FKS)

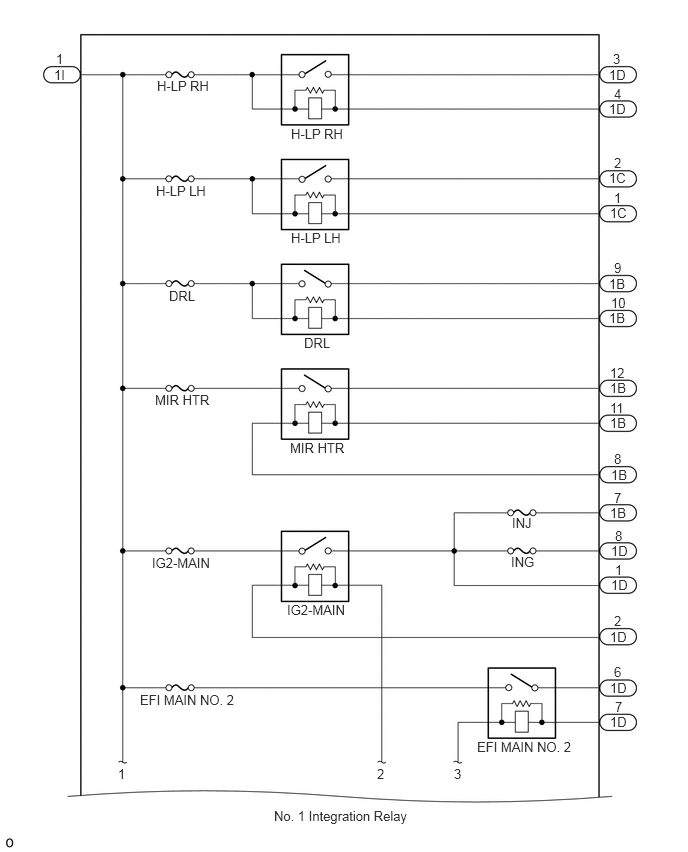

E415079E01
0.583,0.531 0.75,0.74 0.167,0.208 10 false 1 0.563,0.698 0.875,0.896 0.313,0.198 10 false 1I 6.385,0.531 6.552,0.74 0.167,0.208 10 false 3 6.344,0.698 6.656,0.896 0.313,0.198 10 false 1D 6.344,1.052 6.656,1.25 0.313,0.198 10 false 1D 6.396,0.896 6.563,1.104 0.167,0.208 10 false 4 6.344,1.771 6.656,1.969 0.313,0.198 10 false 1C 6.354,2.135 6.667,2.333 0.313,0.198 10 false 1C 6.396,1.615 6.563,1.823 0.167,0.208 10 false 2 6.396,1.979 6.563,2.188 0.167,0.208 10 false 1 6.344,2.875 6.656,3.073 0.313,0.198 10 false 1B 6.344,3.229 6.656,3.427 0.313,0.198 10 false 1B 6.354,3.958 6.667,4.156 0.313,0.198 10 false 1B 6.354,4.323 6.667,4.521 0.313,0.198 10 false 1B 6.354,3.802 6.635,3.99 0.281,0.188 10 false 12 6.365,3.073 6.677,3.271 0.313,0.198 10 false 10 6.396,2.708 6.552,2.906 0.156,0.198 10 false 9 6.354,4.167 6.708,4.344 0.354,0.177 10 false 11 6.365,4.865 6.677,5.063 0.313,0.198 10 false 1B 6.396,4.698 6.552,4.896 0.156,0.198 10 false 8 6.354,5.26 6.667,5.458 0.313,0.198 10 false 1B 6.396,5.104 6.552,5.302 0.156,0.198 10 false 7 6.365,5.656 6.677,5.854 0.313,0.198 10 false 1D 6.406,5.5 6.563,5.698 0.156,0.198 10 false 8 6.365,6.01 6.677,6.208 0.313,0.198 10 false 1D 6.406,5.854 6.573,6.063 0.167,0.208 10 false 1 6.354,6.552 6.667,6.75 0.313,0.198 10 false 1D 6.354,7.438 6.667,7.635 0.313,0.198 10 false 1D 6.354,7.083 6.667,7.281 0.313,0.198 10 false 1D 6.406,7.281 6.563,7.479 0.156,0.198 10 false 7 6.396,6.385 6.563,6.594 0.167,0.208 10 false 2 6.396,6.917 6.563,7.125 0.167,0.208 10 false 6 3.031,1.313 4.104,1.51 1.073,0.198 10 false H-LP RH 3.031,2.396 4.104,2.594 1.073,0.198 10 false H-LP LH 1.625,1.906 2.698,2.104 1.073,0.198 10 false H-LP LH 3.167,3.49 4.24,3.688 1.073,0.198 10 false DRL 1.76,3 2.833,3.198 1.073,0.198 10 false DRL 3.021,4.583 4.094,4.781 1.073,0.198 10 false MIR HTR 1.615,4.083 2.688,4.281 1.073,0.198 10 false MIR HTR 1.635,0.813 2.708,1.01 1.073,0.198 10 false H-LP RH 2.99,6.271 4.063,6.469 1.073,0.198 10 false IG2-MAIN 1.583,5.781 2.656,5.979 1.073,0.198 10 false IG2-MAIN 5.333,5.365 6.406,5.563 1.073,0.198 10 false INJ 5.323,5.771 6.396,5.969 1.073,0.198 10 false ING 4.969,7.698 6.042,7.896 1.073,0.198 10 false EFI MAIN NO. 2 1.458,7.208 2.531,7.406 1.073,0.198 10 false EFI MAIN NO. 2 2.854,8.417 6.375,8.615 3.521,0.198 10 false No. 1 Integration Relay 1.229,7.979 1.396,8.188 0.167,0.208 10 false 1 3.927,7.979 4.094,8.188 0.167,0.208 10 false 2 4.729,7.979 4.896,8.188 0.167,0.208 10 false 3

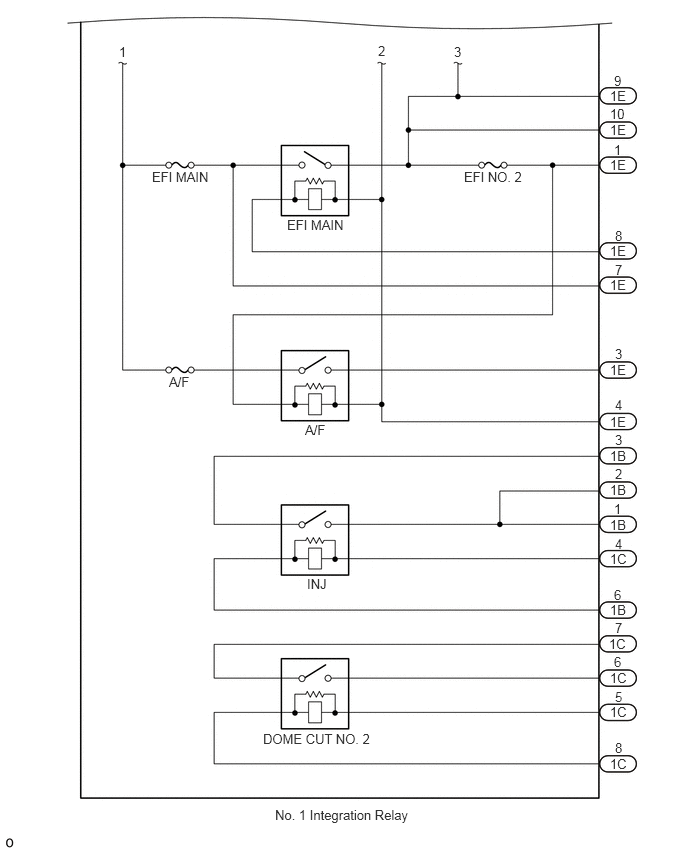

E415080E01
2.865,8.406 6.385,8.604 3.521,0.198 10 false No. 1 Integration Relay 1.24,0.458 1.396,0.656 0.156,0.198 10 false 1 6.396,0.76 6.552,0.958 0.156,0.198 10 false 9 3.938,0.448 4.094,0.646 0.156,0.198 10 false 2 1.583,1.76 2.813,1.958 1.229,0.198 10 false EFI MAIN 2.99,2.26 4.219,2.458 1.229,0.198 10 false EFI MAIN 4.833,1.76 6.063,1.958 1.229,0.198 10 false EFI NO. 2 3.177,4.396 4.406,4.594 1.229,0.198 10 false A/F 1.76,3.896 2.99,4.094 1.229,0.198 10 false A/F 3.198,6 4.427,6.198 1.229,0.198 10 false INJ 2.74,7.615 3.969,7.813 1.229,0.198 10 false DOME CUT NO. 2 6.354,0.917 6.667,1.115 0.313,0.198 10 false 1E 6.354,1.271 6.667,1.469 0.313,0.198 10 false 1E 6.354,1.635 6.667,1.833 0.313,0.198 10 false 1E 6.354,1.104 6.615,1.281 0.26,0.177 10 false 10 6.396,1.479 6.552,1.677 0.156,0.198 10 false 1 4.729,0.458 4.885,0.656 0.156,0.198 10 false 3 6.354,2.531 6.667,2.729 0.313,0.198 10 false 1E 6.354,2.885 6.667,3.083 0.313,0.198 10 false 1E 6.406,2.375 6.563,2.573 0.156,0.198 10 false 8 6.406,2.729 6.563,2.927 0.156,0.198 10 false 7 6.354,3.771 6.667,3.969 0.313,0.198 10 false 1E 6.354,4.313 6.667,4.51 0.313,0.198 10 false 1E 6.406,3.604 6.563,3.802 0.156,0.198 10 false 3 6.406,4.135 6.563,4.333 0.156,0.198 10 false 4 6.354,4.667 6.667,4.865 0.313,0.198 10 false 1B 6.406,4.5 6.563,4.698 0.156,0.198 10 false 3 6.406,4.854 6.563,5.052 0.156,0.198 10 false 2 6.396,5.219 6.552,5.417 0.156,0.198 10 false 1 6.354,5.021 6.667,5.219 0.313,0.198 10 false 1B 6.354,5.385 6.667,5.583 0.313,0.198 10 false 1B 6.354,5.74 6.667,5.938 0.313,0.198 10 false 1C 6.406,5.583 6.563,5.781 0.156,0.198 10 false 4 6.354,6.271 6.667,6.469 0.313,0.198 10 false 1B 6.396,6.115 6.552,6.313 0.156,0.198 10 false 6 6.344,6.625 6.656,6.823 0.313,0.198 10 false 1C 6.354,6.979 6.667,7.177 0.313,0.198 10 false 1C 6.354,7.333 6.667,7.531 0.313,0.198 10 false 1C 6.354,7.875 6.667,8.073 0.313,0.198 10 false 1C 6.406,6.458 6.563,6.656 0.156,0.198 10 false 7 6.396,6.813 6.552,7.01 0.156,0.198 10 false 6 6.406,7.708 6.563,7.906 0.156,0.198 10 false 8 6.406,7.177 6.563,7.375 0.156,0.198 10 false 5

a.

H-LP RH RELAY:

i.
E415094C09
2.823,0.531 3.198,0.771 0.375,0.24 1.552,0.521 1.917,0.771 0.365,0.25 2.948,0.573 3.229,0.719 0.281,0.146 10 false 1I 1.646,0.573 1.927,0.76 0.281,0.188 10 false 1D 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a
*a Component without harness connected
(No. 1 Integration Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1I-1 - 1D-3 Battery voltage not applied between terminals 1I-1 and 1D-4 10 kΩ or higher
1I-1 - 1D-3 Battery positive (+) → 1I-1
Battery negative (-) → 1I-4 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



b.

H-LP LH RELAY:

i.
E415094C10
2.802,0.542 3.219,0.781 0.417,0.24 0.875,0.531 1.292,0.771 0.417,0.24 0.99,0.573 1.208,0.75 0.219,0.177 10 false 1C 0.104,0.073 0.417,0.271 0.313,0.198 10 false *a 2.938,0.583 3.198,0.771 0.26,0.188 10 false 1I
*a Component without harness connected
(No. 1 Integration Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1I-1 - 1C-2 Battery voltage not applied between terminals 1I-1 and 1C-1 10 kΩ or higher
1I-1 - 1C-2 Battery positive (+) → 1I-1
Battery negative (-) → 1C-1 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



c.

DRL RELAY:

i.

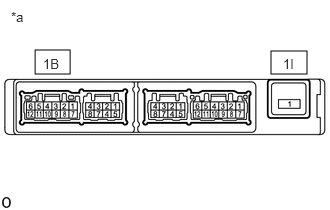

E415094C11
2.823,0.531 3.198,0.771 0.375,0.24 0.365,0.521 0.729,0.771 0.365,0.25 2.948,0.583 3.229,0.729 0.281,0.146 10 false 1I 0.448,0.583 0.729,0.771 0.281,0.188 10 false 1B 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a
*a Component without harness connected
(No. 1 Integration Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1I-1 - 1B-9 Battery voltage not applied between terminals 1I-1 and 1B-10 10 kΩ or higher
1I-1 - 1B-9 Battery positive (+) → 1I-1
Battery negative (-) → 1B-10 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



d.

MIR HTR RELAY:

i.
E415094C11
2.823,0.531 3.198,0.771 0.375,0.24 0.365,0.521 0.729,0.771 0.365,0.25 2.948,0.583 3.229,0.729 0.281,0.146 10 false 1I 0.448,0.583 0.729,0.771 0.281,0.188 10 false 1B 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a
*a Component without harness connected
(No. 1 Integration Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1I-1 - 1B-12 Battery voltage not applied between terminals 1B-11 and 1B-8 10 kΩ or higher
1I-1 - 1B-12 Battery positive (+) → 1B-11
Battery negative (-) → 1B-8 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



e.

IG2-MAIN RELAY:

i.

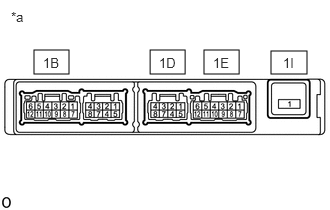

E415094C12
2.823,0.531 3.198,0.771 0.375,0.24 0.354,0.521 0.719,0.771 0.365,0.25 2.125,0.521 2.49,0.771 0.365,0.25 1.563,0.521 1.927,0.771 0.365,0.25 2.948,0.573 3.229,0.719 0.281,0.146 10 false 1I 0.448,0.573 0.729,0.76 0.281,0.188 10 false 1B 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a 2.219,0.573 2.5,0.76 0.281,0.188 10 false 1E 1.656,0.573 1.938,0.76 0.281,0.188 10 false 1D
*a Component without harness connected
(No. 1 Integration Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1I-1 - 1B-7 Battery voltage not applied between terminals 1D-2 and 1E-4 10 kΩ or higher
1I-1 - 1D-8
1I-1 - 1D-1
1I-1 - 1B-7 Battery positive (+) → 1D-2
Battery negative (-) → 1E-4 		Below 1 Ω
1I-1 - 1D-8
1I-1 - 1D-1


If the resistance is not as specified, replace the No. 1 integration relay.



f.

EFI MAIN NO. 2 RELAY:

i.

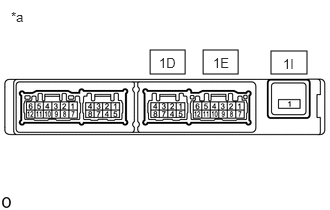

E415094C13
2.823,0.531 3.198,0.771 0.375,0.24 1.563,0.521 1.927,0.771 0.365,0.25 2.115,0.521 2.479,0.771 0.365,0.25 2.948,0.583 3.229,0.729 0.281,0.146 10 false 1I 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a 1.656,0.573 1.938,0.76 0.281,0.188 10 false 1D 2.219,0.573 2.5,0.76 0.281,0.188 10 false 1E
*a Component without harness connected
(No. 1 Integration Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester
Connection 		Condition Specified
Condition
1I-1 - 1D-6 Battery voltage not applied between terminals 1E-9 and 1D-7 10 kΩ or higher
1I-1 - 1D-6 Battery positive (+) → 1E-9
Battery negative (-) → 1D-7 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



g.

EFI MAIN RELAY:

i.
E415094C13
2.823,0.531 3.198,0.771 0.375,0.24 1.563,0.521 1.927,0.771 0.365,0.25 2.115,0.521 2.479,0.771 0.365,0.25 2.948,0.583 3.229,0.729 0.281,0.146 10 false 1I 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a 1.656,0.573 1.938,0.76 0.281,0.188 10 false 1D 2.219,0.573 2.5,0.76 0.281,0.188 10 false 1E
*a Component without harness connected
(No. 1 Integration Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1I-1 - 1E-1 Battery voltage not applied between terminals 1E-8 and 1E-4 10 kΩ or higher
1I-1 - 1D-7
1I-1 - 1E-9
1I-1 - 1E-10
1I-1 - 1E-4
1I-1 - 1E-1 Battery positive (+) → 1E-8
Battery negative (-) → 1E-4 		Below 1 Ω
1I-1 - 1D-7
1I-1 - 1E-9
1I-1 - 1E-10
1I-1 - 1E-4


If the resistance is not as specified, replace the No. 1 integration relay.



h.

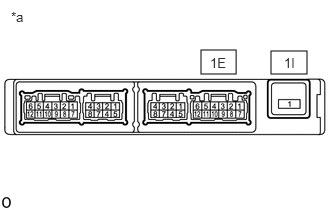

E415094C14
2.823,0.531 3.198,0.771 0.375,0.24 2.094,0.521 2.458,0.771 0.365,0.25 2.958,0.573 3.24,0.719 0.281,0.146 10 false 1I 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a 2.188,0.573 2.469,0.76 0.281,0.188 10 false 1E
*a Component without harness connected
(No. 1 Integration Relay)


A/F RELAY:

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1I-1 - 1E-3 Battery voltage not applied between terminals 1E-1 and 1E-4 10 kΩ or higher
1I-1 - 1E-3 Battery positive (+) → 1E-1
Battery negative (-) → 1E-4 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



i.
E415094C15
0.875,0.531 1.25,0.771 0.375,0.24 0.344,0.531 0.719,0.771 0.375,0.24 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a 0.979,0.583 1.26,0.771 0.281,0.188 10 false 1C 0.438,0.583 0.719,0.729 0.281,0.146 10 false 1B
*a Component without harness connected
(No. 1 Integration Relay)


INJ RELAY:

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1B-3 - 1B-1 Battery voltage not applied between terminals 1B-6 and 1C-4 10 kΩ or higher
1B-3 - 1B-2
1B-3 - 1B-1 Battery positive (+) → 1B-6
Battery negative (-) → 1C-4 		Below 1 Ω
1B-3 - 1B-2


If the resistance is not as specified, replace the No. 1 integration relay.



j.
E415094C16
0.885,0.521 1.25,0.771 0.365,0.25 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a 0.979,0.583 1.26,0.771 0.281,0.188 10 false 1C
*a Component without harness connected
(No. 1 Integration Relay)


DOME CUT NO. 2 RELAY:

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1C-7 - 1C-6 Battery voltage not applied between terminals 1C-8 and 1C-5 10 kΩ or higher
1C-7 - 1C-6 Battery positive (+) → 1C-8
Battery negative (-) → 1C-5 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



k.
E415094C14
2.823,0.531 3.198,0.771 0.375,0.24 2.094,0.521 2.458,0.771 0.365,0.25 2.958,0.573 3.24,0.719 0.281,0.146 10 false 1I 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a 2.188,0.573 2.469,0.76 0.281,0.188 10 false 1E
*a Component without harness connected
(No. 1 Integration Relay)


OTHER:

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1I-1 - 1E-7 Always Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



Hide 82641 2.INSPECT NO. 1 INTEGRATION RELAY (for 1GD-FTV)

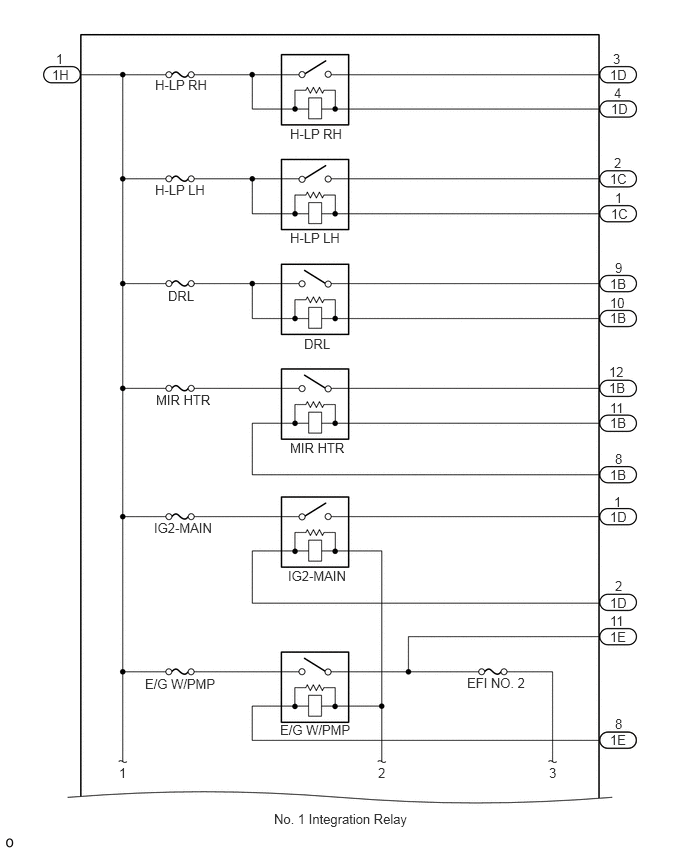

E415081E01
0.542,0.698 0.854,0.896 0.313,0.198 10 false 1H 0.583,0.531 0.854,0.74 0.271,0.208 10 false 1 6.354,0.698 6.667,0.896 0.313,0.198 10 false 1D 6.365,1.052 6.677,1.25 0.313,0.198 10 false 1D 6.385,0.531 6.74,0.719 0.354,0.188 10 false 3 6.396,0.885 6.792,1.104 0.396,0.219 10 false 4 6.354,1.781 6.667,1.979 0.313,0.198 10 false 1C 6.365,2.146 6.677,2.344 0.313,0.198 10 false 1C 6.396,1.615 6.75,1.813 0.354,0.198 10 false 2 6.406,1.979 6.677,2.167 0.271,0.188 10 false 1 6.354,2.875 6.667,3.073 0.313,0.198 10 false 1B 6.354,3.229 6.667,3.427 0.313,0.198 10 false 1B 6.406,2.708 6.688,2.906 0.281,0.198 10 false 9 6.354,3.073 6.813,3.25 0.458,0.177 10 false 10 6.344,3.958 6.656,4.156 0.313,0.198 10 false 1B 6.354,4.323 6.667,4.521 0.313,0.198 10 false 1B 6.344,3.792 6.927,4 0.583,0.208 10 false 12 6.354,4.167 6.958,4.313 0.604,0.146 10 false 11 6.354,4.865 6.667,5.063 0.313,0.198 10 false 1B 6.406,4.698 6.823,4.885 0.417,0.188 10 false 8 6.354,5.302 6.667,5.5 0.313,0.198 10 false 1D 6.396,5.146 6.708,5.344 0.313,0.198 10 false 1 6.354,6.198 6.667,6.396 0.313,0.198 10 false 1D 6.354,6.552 6.667,6.76 0.313,0.208 10 false 1E 6.354,7.625 6.667,7.823 0.313,0.198 10 false 1E 6.406,6.021 6.885,6.229 0.479,0.208 10 false 2 6.354,6.385 6.781,6.583 0.427,0.198 10 false 11 6.406,7.458 6.792,7.667 0.385,0.208 10 false 8 1.615,0.802 2.688,1 1.073,0.198 10 false H-LP RH 3.021,1.313 4.094,1.51 1.073,0.198 10 false H-LP RH 3.021,2.396 4.094,2.594 1.073,0.198 10 false H-LP LH 1.615,1.896 2.688,2.094 1.073,0.198 10 false H-LP LH 1.75,3 2.823,3.198 1.073,0.198 10 false DRL 3.167,3.5 4.24,3.698 1.073,0.198 10 false DRL 3.021,4.583 4.094,4.781 1.073,0.198 10 false MIR HTR 1.625,4.083 2.698,4.281 1.073,0.198 10 false MIR HTR 3,5.917 4.073,6.115 1.073,0.198 10 false IG2-MAIN 1.604,5.417 2.677,5.615 1.073,0.198 10 false IG2-MAIN 1.51,7.042 2.583,7.24 1.073,0.198 10 false E/G W/PMP 2.917,7.521 3.99,7.719 1.073,0.198 10 false E/G W/PMP 4.865,7.031 5.938,7.229 1.073,0.198 10 false EFI NO. 2 3.938,7.969 4.094,8.167 0.156,0.198 10 false 2 1.24,7.969 1.396,8.167 0.156,0.198 10 false 1 5.719,7.969 5.875,8.167 0.156,0.198 10 false 3 2.854,8.448 6.375,8.646 3.521,0.198 10 false No. 1 Integration Relay

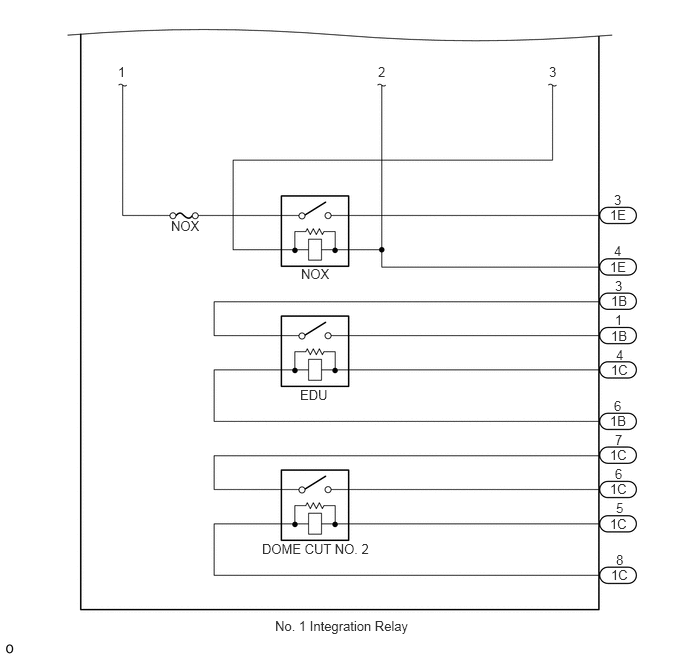

E415082E01
2.865,6.438 6.385,6.635 3.521,0.198 10 false No. 1 Integration Relay 1.229,0.667 1.385,0.865 0.156,0.198 10 false 1 3.938,0.667 4.094,0.865 0.156,0.198 10 false 2 5.719,0.667 5.875,0.865 0.156,0.198 10 false 3 6.354,2.156 6.583,2.365 0.229,0.208 10 false 1E 6.396,2 6.771,2.208 0.375,0.208 10 false 3 6.354,2.698 6.563,2.896 0.208,0.198 10 false 1E 6.396,2.531 6.865,2.729 0.469,0.198 10 false 4 6.406,2.896 6.865,3.094 0.458,0.198 10 false 3 6.365,3.052 6.594,3.25 0.229,0.198 10 false 1B 6.365,3.417 6.625,3.604 0.26,0.188 10 false 1B 6.406,3.25 6.844,3.479 0.438,0.229 10 false 1 6.365,3.771 6.625,3.958 0.26,0.188 10 false 1C 6.417,3.615 6.823,3.813 0.406,0.198 10 false 4 6.354,4.302 6.615,4.49 0.26,0.188 10 false 1B 6.354,4.656 6.615,4.844 0.26,0.188 10 false 1C 6.354,5.01 6.615,5.198 0.26,0.188 10 false 1C 6.354,5.375 6.615,5.563 0.26,0.188 10 false 1C 6.365,5.906 6.625,6.094 0.26,0.188 10 false 1C 6.396,4.146 6.865,4.344 0.469,0.198 10 false 6 6.406,4.5 6.865,4.698 0.458,0.198 10 false 7 6.406,4.854 6.719,5.052 0.313,0.198 10 false 6 6.417,5.208 6.833,5.448 0.417,0.24 10 false 5 6.417,5.75 6.792,5.958 0.375,0.208 10 false 8 1.781,2.271 2.24,2.469 0.458,0.198 10 false NOX 3.135,2.771 3.594,2.969 0.458,0.198 10 false NOX 3.125,4.031 3.583,4.229 0.458,0.198 10 false EDU 2.729,5.635 4.01,5.844 1.281,0.208 10 false DOME CUT NO. 2

a.

H-LP RH RELAY:

i.

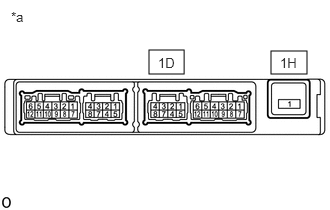

E415094C01
2.823,0.531 3.198,0.771 0.375,0.24 1.552,0.521 1.917,0.771 0.365,0.25 2.917,0.573 3.198,0.719 0.281,0.146 10 false 1H 1.646,0.573 1.927,0.76 0.281,0.188 10 false 1D 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a
*a Component without harness connected
(No. 1 Integration Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1H-1 - 1D-3 Battery voltage not applied between terminals 1H-1 and 1D-4 10 kΩ or higher
1H-1 - 1D-3 Battery positive (+) → 1H-1
Battery negative (-) → 1D-4 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



b.

H-LP LH RELAY:

i.

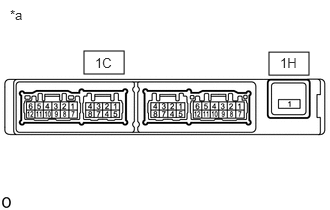

E415094C02
2.802,0.542 3.219,0.781 0.417,0.24 0.875,0.531 1.292,0.771 0.417,0.24 0.99,0.573 1.208,0.75 0.219,0.177 10 false 1C 0.104,0.073 0.417,0.271 0.313,0.198 10 false *a 2.917,0.573 3.177,0.76 0.26,0.188 10 false 1H
*a Component without harness connected
(No. 1 Integration Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1H-1 - 1C-2 Battery voltage not applied between terminals 1H-1 and 1C-1 10 kΩ or higher
1H-1 - 1C-2 Battery positive (+) → 1H-1
Battery negative (-) → 1C-1 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



c.

DRL RELAY:

i.
E415094C03
2.823,0.531 3.198,0.771 0.375,0.24 0.365,0.521 0.729,0.771 0.365,0.25 2.917,0.583 3.198,0.729 0.281,0.146 10 false 1H 0.448,0.583 0.729,0.771 0.281,0.188 10 false 1B 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a
*a Component without harness connected
(No. 1 Integration Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1H-1 - 1B-9 Battery voltage not applied between terminals 1H-1 and 1B-10 10 kΩ or higher
1H-1 - 1B-9 Battery positive (+) → 1H-1
Battery negative (-) → 1B-10 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



d.

MIR HIT RELAY:

i.
E415094C03
2.823,0.531 3.198,0.771 0.375,0.24 0.365,0.521 0.729,0.771 0.365,0.25 2.917,0.583 3.198,0.729 0.281,0.146 10 false 1H 0.448,0.583 0.729,0.771 0.281,0.188 10 false 1B 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a
*a Component without harness connected
(No. 1 Integration Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1H-1 - 1B-12 Battery voltage not applied between terminals 1B-11 and 1B-8 10 kΩ or higher
1H-1 - 1B-12 Battery positive (+) → 1B-11
Battery negative (-) → 1B-8 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



e.

IG2-MAIN RELAY:

i.

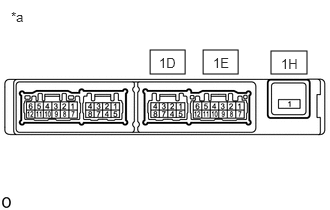

E415094C05
2.823,0.531 3.198,0.771 0.375,0.24 1.563,0.521 1.927,0.771 0.365,0.25 2.115,0.521 2.479,0.771 0.365,0.25 2.927,0.583 3.208,0.729 0.281,0.146 10 false 1H 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a 1.656,0.573 1.938,0.76 0.281,0.188 10 false 1D 2.219,0.573 2.5,0.76 0.281,0.188 10 false 1E
*a Component without harness connected
(No. 1 Integration Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1H-1 - 1D-1 Battery voltage not applied between terminals 1D-2 and 1E-4 10 kΩ or higher
1H-1 - 1D-1 Battery positive (+) → 1D-2
Battery negative (-) → 1E-4 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



f.

E/G W/PMP RELAY:

i.
E415094C18
2.823,0.531 3.198,0.771 0.375,0.24 2.115,0.521 2.479,0.771 0.365,0.25 2.927,0.583 3.208,0.729 0.281,0.146 10 false 1H 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a 2.219,0.573 2.5,0.76 0.281,0.188 10 false 1E
*a Component without harness connected
(No. 1 Integration Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1H-1 - 1E-4
1H-1 - 1E-11 		Battery voltage not applied between terminals 1E-8 and 1E-4 10 kΩ or higher
1H-1 - 1E-4
1H-1 - 1E-11 		Battery positive (+) → 1E-8
Battery negative (-) → 1E-4 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



g.

NOX RELAY:

i.
E415094C18
2.823,0.531 3.198,0.771 0.375,0.24 2.115,0.521 2.479,0.771 0.365,0.25 2.927,0.583 3.208,0.729 0.281,0.146 10 false 1H 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a 2.219,0.573 2.5,0.76 0.281,0.188 10 false 1E
*a Component without harness connected
(No. 1 Integration Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1H-1 - 1E-3 Battery voltage not applied between terminals 1E-11 and 1E-4 10 kΩ or higher
1H-1 - 1E-3 Battery positive (+) → 1E-11
Battery negative (-) → 1E-4 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



h.

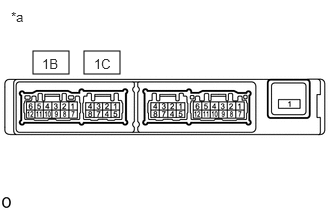

E415094C07
0.875,0.531 1.25,0.771 0.375,0.24 0.344,0.531 0.719,0.771 0.375,0.24 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a 0.979,0.583 1.26,0.771 0.281,0.188 10 false 1C 0.438,0.583 0.719,0.729 0.281,0.146 10 false 1B
*a Component without harness connected
(No. 1 Integration Relay)


EDU RELAY:

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1B-3 - 1B-1 Battery voltage not applied between terminals 1B-6 and 1C-4 10 kΩ or higher
1B-3 - 1B-1 Battery positive (+) → 1B-6
Battery negative (-) → 1C-4 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.



i.

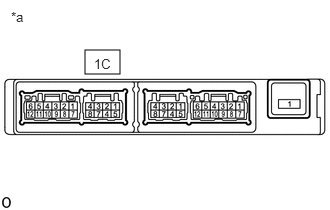

E415094C08
0.885,0.521 1.25,0.771 0.365,0.25 0.115,0.094 0.427,0.292 0.313,0.198 10 false *a 0.979,0.583 1.26,0.771 0.281,0.188 10 false 1C
*a Component without harness connected
(No. 1 Integration Relay)


DOME CUT NO. 2 RELAY:

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1C-7 - 1C-6 Battery voltage not applied between terminals 1C-8 and 1C-5 10 kΩ or higher
1C-7 - 1C-6 Battery positive (+) → 1C-8
Battery negative (-) → 1C-5 		Below 1 Ω


If the resistance is not as specified, replace the No. 1 integration relay.
