DRIVE SHAFT / PROPELLER SHAFT  PROPELLER SHAFT ASSEMBLY(for Standard Roof)  DISASSEMBLY

1.583,1.021 0.979,0.469 0.979,0.469 1.74,0.833 true 0.813,0.375 1.125,0.573 0.313,0.198 10 false *a

*a

Matchmark

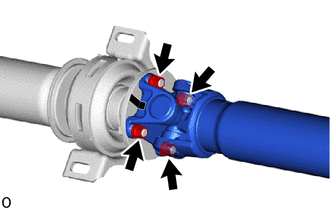

Place matchmarks on the flange yoke and propeller shaft.

1.719,1.104 2.698,0.594 2.698,0.594 1.917,1.156 true 2.729,0.5 3.042,0.656 0.313,0.156 10 false *a

*a

Matchmark

Place matchmarks on the propeller shaft and flange yoke.

1.531,1.302 2.49,1.719 2.49,1.719 1.688,1.083 true 2.552,1.677 2.865,1.833 0.313,0.156 10 false *a

*a

Matchmark

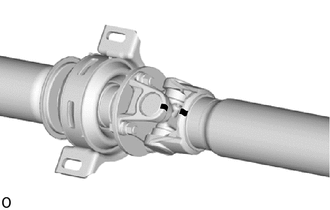

Place matchmarks on the sleeve yoke and intermediate shaft.

Using a brass bar and hammer, slightly tap in the spider bearing outer races.

0.833,1.167 1.167,1.167 true 2.625,1.25 3.063,1.25 true 1.708,0.635 2.021,0.833 0.313,0.198 10 false *a 0.625,0.656 0.938,0.854 0.313,0.198 10 false *b 0.5,1.083 0.833,1.281 0.333,0.198 10 true SST 3.146,1.167 3.302,1.396 0.156,0.229 10 true A

*a	Turn
*b	Hold

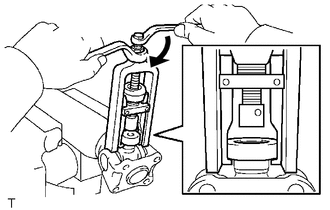

Using SST, push out the spider bearing from the propeller shaft assembly.

SST

09332-25010

HINT:

Before installing SST, sufficiently raise the part labeled A. If the part labeled A is too low, it may be difficult to install SST.

2.719,1.146 2.313,0.719 true 2.771,1.104 3.083,1.302 0.313,0.198 10 false *a

*a	Hammering Point

Tap off the propeller shaft to remove the spider bearing.

NOTICE:

Do not tap the shaft.

HINT:

Remove the spider bearing on the opposite side using the same procedure.

2.125,1.146 2.5,1.146 true 0.573,1.188 0.948,1.188 true 1.656,0.604 1.969,0.802 0.313,0.198 10 false *a 0.438,0.177 0.781,0.385 0.344,0.208 10 false *b 1.948,1.083 2.156,1.313 0.208,0.229 10 false A 0.26,1.115 0.656,1.313 0.396,0.198 10 false SST

*a	Turn
*b	Hold

Install the 2 removed spider bearing outer races to the spider.

1.396,0.313 1.823,0.313 1.823,0.313 2.417,0.604 true 1.188,0.219 1.406,0.417 0.219,0.198 10 *a

*a	Hammering Point

Tap off the spider bearing with a hammer.

1.396,1.031 2.438,0.365 2.438,0.365 1.469,1.115 true 2.479,0.281 2.792,0.438 0.313,0.156 10 false *a

*a

Matchmark

Place matchmarks on the flange coupling and flange yoke.

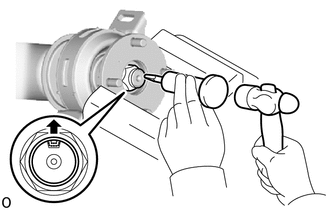

Using SST and hammer, loosen the staked part of the lock nut.

SST

09930-00010  (09931-00010, 09931-00020)

NOTICE:

·

Completely loosen the staked part of the lock nut when removing it.

·

Do not damage the threads of the intermediate shaft.

2.427,1.073 2.427,1.323 2.427,1.323 2.594,1.323 true 2.667,1.24 3.125,1.438 0.458,0.198 10 false SST 1.198,0.656 1.51,0.813 0.313,0.156 10 false *a 1.521,1.635 1.833,1.792 0.313,0.156 10 false *b

*a	Turn
*b	Hold

Using SST and a 30 mm deep socket wrench, remove the lock nut.

SST

09330-00021

1.698,1.344 2.698,1.719 2.698,1.719 1.688,1.188 true 2.75,1.667 3.063,1.823 0.313,0.156 10 false *a

*a

Matchmark

Place matchmarks on the intermediate shaft and flange coupling.

2.063,0.448 2.063,0.281 2.063,0.281 2.229,0.281 true 1.167,1.854 1.479,2.01 0.313,0.156 10 false *a 0.458,1.177 0.771,1.333 0.313,0.156 10 false *b 2.302,0.198 2.76,0.396 0.458,0.198 10 false SST

*a	Turn
*b	Hold

Using SST, remove the flange coupling and 2 washers from the intermediate shaft.

SST

09950-30012  (09951-03010, 09953-03010, 09954-03010, 09955-03030, 09956-03030)
