AUDIO / VIDEO AUDIO AND VISUAL SYSTEM(for Radio Receiver Type) SYSTEM DESCRIPTION

CD (Compact Disc) PLAYER OUTLINE

A compact disc player uses a laser pickup to read digital signals recorded on a compact disc (CD). By converting the digital signals to analog, it can play music and audio.

CAUTION:: Do not look directly at the laser pickup because the CD player uses an invisible laser beam. Be sure to operate the player only as instructed.

NOTICE:: ·

Do not disassemble any part of the CD player.

·

Do not apply oil to the CD player.

·

Do not insert anything but a CD into the CD player.

Usable discs

This player can play only audio CDs, CD-Rs (CD-Recordable) and CD-RWs (CD-ReWritable) that have any of the following marks:

Precautions for use of discs

NOTICE:: ·

Copy-protected CDs cannot be played.

·

CD-Rs and CD-RWs may not be played depending on the recording conditions or characteristics of the discs, or due to damage, dirt or deterioration caused by leaving the discs in the cabin for a long time.

·

Unfinalized CD-Rs and CD-RWs cannot be played.

·

DualDiscs that mate DVD recorded material on one side with CD digital audio material on the other cannot be played.

·

Keep the discs away from dirt. Be careful not to damage the discs or leave fingerprints on them.

·

Hold discs by the outer edge and center hole with the label side up.

·

Leaving the disc exposed halfway out of the slot for a long time after pressing the disc eject button may cause deformation of the disc, making the disc unusable.

·

If discs have adhesive tape, stickers, CD labels or any traces of such labels attached, the discs may not be ejected or player malfunctions may result.

·

Keep the discs away from direct sunlight. (Exposure to direct sunlight may cause deformation of the disc, making the disc unusable.)

·

Do not use odd-shaped CDs because these may cause player malfunctions.

·

Do not use discs whose recording portion is transparent or translucent because they may not be inserted, ejected or played normally.

·

Use only 4.7 in. (12 cm) CDs.

·

Do not use 3 in. (8 cm) CDs either with or without adaptors.

HINT:: ·

When it is cold or it is raining, if the windows mist up, mist and condensation may form in the player. In such cases, the CD may skip or stop in the middle of play. Ventilate or dehumidify the cabin for a while before using the player.

·

The CD may skip if the player experiences strong vibrations when the vehicle is driven on rough roads or similar uneven surfaces.

Cleaning

NOTICE:: Do not use a lens cleaner because it may cause a malfunction in the pickup portion of the player.

If dirt is on the disc surface, wipe it clean with a soft dry cloth such as an eyeglass cleaner for plastic lenses from the inside to the outside in a radial direction.

NOTICE:: ·

Pressing on the disc by hand or rubbing the disc with a hard cloth may scratch the disc surface.

·

Use of solvents such as record spray, antistatic agents, alcohol, benzine, thinners or a chemical cloth may cause damage to the disc, making the disc unusable.

MP3/WMA/ACC OUTLINE

Playable MP3 file standards

Compatible standard	MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
Compatible sampling frequency	· MPEG1 LAYER3: 32, 44.1, 48 (kHz) · MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
Compatible bit rate	· MPEG1 LAYER3: 32 to 320 (kbps) · MPEG2 LSF LAYER3: 8 to 160 (kbps) · Compatible with VBR
Compatible channel mode	Stereo, joint stereo, dual channel, monaural

Playable WMA file standards

Compatible standard	WMA Ver. 7, 8, 9
Compatible sampling frequency	32, 44.1, 48 (kHz)
Compatible bit rate (Only compatible with 2-channel playback)	· Ver. 7, 8: CBR48 to 192 (kbps) · Ver. 9: CBR48 to 320 (kbps)

Playable AAC file standards

Compatible standard	MPEG4/AAC-LC
Compatible sampling frequency	11.025, 12, 16, 22.05, 24, 32, 44.1, 48 (kHz)
Compatible bit rate (Only compatible with 2-channel playback)	· 8 to 320 (kbps) · Compatible with VBR

ID3 tag, WMA tag and AAC tag

Additional text information called an ID3 tag can be input to MP3 files. Information such as song titles and artist names can be stored.

HINT:: This player is compatible with ID3 tags of ID3 Ver. 1.0 and 1.1, and ID3 Ver. 2.2 and 2.3. (Number of characters complies with ID3 Ver. 1.0 and 1.1.)

ii.

Additional text information called a WMA tag can be input to WMA files. Information such as song titles and artist names can be stored.

iii.

Additional text information called an AAC tag can be input to AAC files. Information such as song titles and artist names can be stored.

Usable media

Only CD-ROMs, CD-Rs (CD-Recordable) and CD-RWs (CD-ReWritable) can be used to play MP3/WMA/AAC files.

NOTICE:: ·

CD-Rs and CD-RWs are more easily affected by a hot and humid environment than discs used for normal audio CDs. For this reason, some CD-Rs and CD-RWs do not play.

·

If there are fingerprints or scratches on a disc, the disc may not play or the disc may skip.

·

Some CD-Rs and CD-RWs may deteriorate if they are left in the cabin for a long time.

·

Keep CD-Rs and CD-RWs in an opaque case.

Usable media format

Disc format	CD-ROM Mode 1 and Mode 2, CD-ROM XA Mode 2 Form 1 and Form 2
File format	ISO9660 Level 1 and Level 2 (Joliet, Romeo)

HINT:: ·

As for MP3/WMA/AAC files written in any unlisted format, the contents of the files may not be played normally or the file names or folder names may not be displayed correctly.

·

This player is compatible with multi-session discs and can play CD-Rs and CD-RWs on which MP3/WMA/AAC files have been added. However, only the first session can be played.

·

Discs whose first session includes both music data and MP3, WMA or AAC format data cannot be played.

ii.

Standards and restrictions

Maximum directory levels	8 levels
Maximum number of characters for a folder name/file name	32 characters
Maximum number of folders	192 (Including empty folders, root folders, and folders that do not contain MP3/WMA/AAC files)
Maximum number of files in a disc	255 (Including non-MP3/WMA/AAC files)

File names

Only files with an extension of ".mp3", ".wma" or ".m4a" can be recognized and played as MP3, WMA or AAC files.

ii.

Save MP3, WMA or AAC files with an extension of ".mp3", ".wma" or ".m4a".

NOTICE:: If non-MP3, non-WMA or non-AAC files are saved with an extension of ".mp3", ".wma" or ".m4a", those files may be wrongly recognized as MP3, WMA or AAC files and played. A loud noise may occur and damage to the speaker may result.

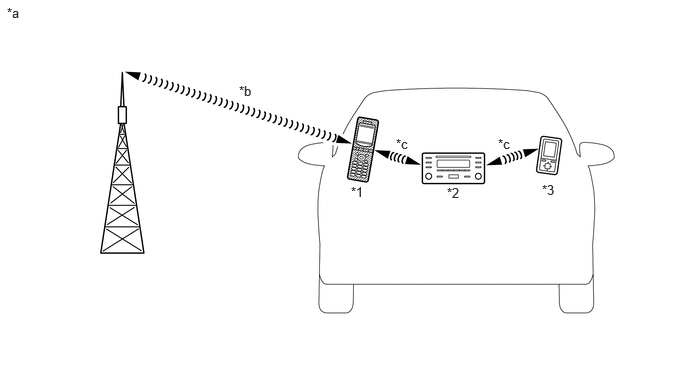

"Bluetooth" OUTLINE

2.49,0.865 2.677,1.031 0.188,0.167 10 false *b 4.125,1.417 4.313,1.583 0.188,0.167 10 false *c 4.656,1.927 4.844,2.094 0.188,0.167 10 false *2 5.646,1.896 5.833,2.063 0.188,0.167 10 false *3 3.656,1.917 3.844,2.083 0.188,0.167 10 false *1 0.073,0.052 0.26,0.219 0.188,0.167 10 false *a 5.188,1.417 5.375,1.583 0.188,0.167 10 false *c

*1	Cellular Phone ("Bluetooth" compatible type)	*2	Radio Receiver Assembly (Built-in "Bluetooth" antenna)
*3	Portable Audio Player ("Bluetooth" compatible type)	-	-
*a	Example	*b	Cellular Network
*c	"Bluetooth" Wireless Connection	-	-

"Bluetooth" is a trademark owned by Bluetooth SIG, Inc.

"Bluetooth" is a wireless connection technology that uses the 2.4 GHz frequency band.

HINT:: The communication performance of "Bluetooth" may vary depending on obstructions or radio wave conditions between communication devices, electromagnetic radiation, communication device sensitivity or antenna capacity.

Hands-free function

The "Bluetooth" built-in radio receiver and a "Bluetooth" compatible cellular phone* can be connected using a "Bluetooth" wireless connection. This enables the use of the hands-free function on the cellular phone even if the phone is in a pocket or bag. For this reason, it is not necessary to use a connector or cable to connect the cellular phone.

*: Some versions of "Bluetooth" compatible cellular phones may not function.

ii.

Compatible hands-free devices

Required "Bluetooth" specifications	Ver. 1.1 or higher (Ver. 4.1 or higher recommended)
Compatible profiles	· HFP (Hands Free Profile) Ver. 1.0 or higher (Ver. 1.7 or higher recommended) · OPP (Object Push Profile) Ver. 1.1 or higher (Ver. 1.2 or higher recommended) · PBAP (Phone Book Access Profile) Ver. 1.0 or higher (Ver. 1.2 or higher recommended)
Maximum number of hands-free devices that can be registered (including audio devices)	5

"Bluetooth" audio function

The "Bluetooth" built-in radio receiver assembly and a "Bluetooth" compatible portable audio player* can be connected using a "Bluetooth" wireless connection. This enables files stored in the portable audio player to be heard from the vehicle speakers. In addition, operations such as play/stop can be performed directly from the radio receiver assembly.

*: Some versions of "Bluetooth" compatible audio players may not be able to operate the "Bluetooth" function, or music may play, but functions available using the radio receiver assembly may be limited.

ii.

Compatible "Bluetooth" audio devices

"Bluetooth" specifications	Ver. 1.1 or higher (Ver. 4.1 or higher recommended)
Following profiles	· A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher (Ver. 1.3 or higher recommended) · AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Ver. 1.6 or higher recommended)
Maximum number of audio devices that can be registered (including hands-free device)	5

RADIO DESCRIPTION

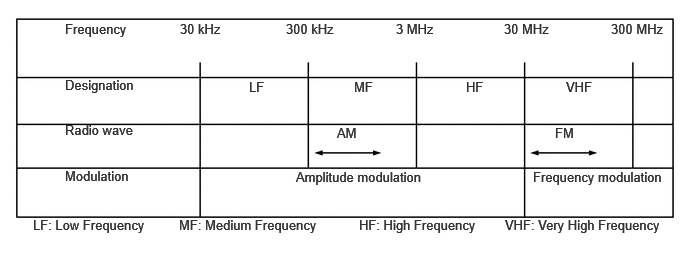

Radio frequency band

Radio broadcasts use the radio frequency bands shown in the table below.

0.677,0.219 1.469,0.427 0.792,0.208 10 false Frequency 1.875,0.219 2.417,0.385 0.542,0.167 10 false 30 kHz 5.25,0.219 5.833,0.385 0.583,0.167 10 false 30 MHz 4.125,0.219 4.677,0.385 0.552,0.167 10 false 3 MHz 2.979,0.219 3.635,0.385 0.656,0.167 10 false 300 kHz 6.365,0.219 6.979,0.385 0.615,0.167 10 false 300 MHz 0.677,0.802 1.469,1.01 0.792,0.208 10 false Designation 0.677,1.271 1.458,1.479 0.781,0.208 10 false Radio wave 0.677,1.75 1.469,1.958 0.792,0.208 10 false Modulation 2.594,0.823 3.063,1.031 0.469,0.208 10 false LF 3.688,0.823 4.177,1.052 0.49,0.229 10 false MF 4.854,0.823 5.24,1.073 0.385,0.25 10 false HF 5.896,0.823 6.281,1.052 0.385,0.229 10 false VHF 3.51,1.302 3.948,1.552 0.438,0.25 10 false AM 5.781,1.302 6.104,1.51 0.323,0.208 10 false FM 5.552,1.76 6.99,1.927 1.438,0.167 10 false Frequency modulation 3.083,1.76 4.521,1.927 1.438,0.167 10 false Amplitude modulation 0.344,2.26 1.594,2.469 1.25,0.208 10 false LF: Low Frequency 5.26,2.26 6.979,2.469 1.719,0.208 10 false VHF: Very High Frequency 3.74,2.26 5.063,2.469 1.323,0.208 10 false HF: High Frequency 1.865,2.26 3.5,2.469 1.635,0.208 10 false MF: Medium Frequency

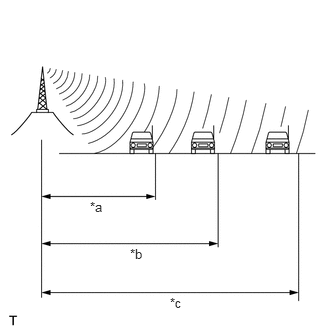

Service area

0.937,2.07 1.107,2.226 0.17,0.156 10 *a 1.77,3.075 1.94,3.231 0.17,0.156 10 *c 1.354,2.56 1.524,2.716 0.17,0.156 10 *b

*a	FM (Stereo)
*b	FM (Monaural)
*c	AM

The service areas of AM and FM broadcasts are vastly different. Sometimes an AM broadcast can be received very clearly but an FM stereo broadcast cannot. FM stereo has the smallest service area, and is prone to pick up static and other types of interference such as noise.

Radio reception problems

HINT:: In addition to static, other problems such as "phasing", "multipath" and "fade out" exist. These problems are not caused by electrical noise, but by the radio signal propagation method itself.

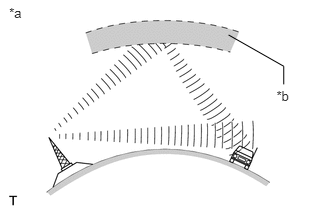

0.095,0.054 0.306,0.224 0.212,0.17 10 *a 2.88,0.918 3.092,1.088 0.212,0.17 10 *b 2.38,0.363 2.956,0.69 2.956,0.69 2.956,0.879 false

*a	Phasing
*b	Ionosphere

Phasing

AM broadcasts are susceptible to electrical interference and another kind of interference called phasing. Occurring only at night, phasing is the interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off the ionosphere and the other signal is received directly from the transmitter.

ii.

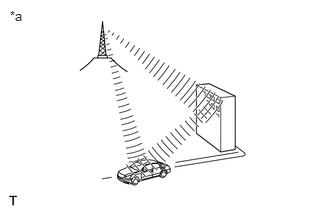

0.103,0.084 0.298,0.237 0.194,0.153 10 *a

Multipath

Multipath is a type of interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off buildings or mountains and the other signal is received directly from the transmitter.

iii.

0.112,0.045 0.282,0.229 0.17,0.184 10 *a

Fade Out

Fade out

Fade out is caused by objects (buildings, mountains and other such large obstacles) that deflect away part of a signal, resulting in a weaker signal when the object is between the transmitter and vehicle. High frequency radio waves, such as FM broadcasts, are easily deflected by obstructions. Low frequency radio waves, such as AM broadcasts, are less likely to deflect.

Noise problem

Technicians must have a clear understanding about each customer's noise complaint. Use the following table to diagnose noise problems.

Radio Frequency	Noise Occurrence Condition	Presumable Cause
AM	Noise occurs in a specific area	Foreign noise
	Noise occurs when listening to an intermittent broadcast	An identical program transmitted from multiple towers can cause noise where the signals overlap
	Noise occurs only at night	Signal phasing
FM	Noise occurs while driving in a specified area	Multipath resulting from a change in FM frequency

USB AUDIO SYSTEM FUNCTION OUTLINE

The No. 1 stereo jack adapter assembly is equipped with a USB terminal. Connecting a USB device or "iPod" to the No. 1 stereo jack adapter assembly allows music files to be played. Not only is it possible to play music from a USB device with audio functions, is also possible to play MP3, WMA or AAC music files that are stored on a USB device. In addition, "iPod" control software is installed, allowing file selection from playlists and operation using shuffle mode.

HINT:: Operation through the controls of a USB device or some "iPod" generation cannot be performed while it is connected.

USB audio system compatible model

USB device

The following device formats can be used:

Compatible USB device formats

USB communication format: USB 2.0 FS (12MBPS)

File format: FAT16/32 (Windows)

Class: Mass storage class

MP3 and WMA files written in any format other than those listed above may not play correctly, and their names and folder names may not be displayed correctly.

Items related to standards and limitations are as follows:

Maximum directory hierarchy: 8 levels

Maximum number of folders in device: 3000 (including the root folder)

Maximum number of files in device: 9999

Maximum number of files per folder: 255

ii.

"iPod"

"iPhone", "iPod nano" and "iPod touch" are trademarks of Apple Inc., registered in the U.S. and other countries.

The following "iPod nano", "iPod touch" and "iPhone" devices can be used with this system.

Made for

"iPod nano" (7th generation)

"iPod touch" (6th generation)

"iPod touch" (5th generation)

"iPhone 7 Plus"

"iPhone 7"

"iPhone SE"

"iPhone 6s Plus"

"iPhone 6s"

"iPhone 6 Plus"

"iPhone 6"

"iPhone 5s"

"iPhone 5c"

"iPhone 5"

"iPhone 4S"

HINT:: ·

Depending on differences between models or software versions etc., some models might be incompatible with this system.

·

"iPod video" is not supported.

AUTOMATIC SOUND LEVELIZER (ASL) FUNCTION OUTLINE

The Automatic Sound Levelizer (ASL) function automatically adjusts the audio system volume level in order to compensate for increased vehicle noise (vehicle noise tends to increase as vehicle speed increases). The ASL adjusts the volume level based upon vehicle speed signals that it receives from the combination meter assembly.
