RM35X0E _51 Engine / Hybrid System _078825 STOP AND START _0383280 VACUUM SENSOR ASSEMBLY A

STOP AND START  VACUUM SENSOR ASSEMBLY  INSTALLATION


PROCEDURE

Hide 89421B 1.INSTALL VACUUM SENSOR

a.

Install a new vacuum sensor grommet to the brake booster assembly.


b.
A438026E01
2.375,0.417 2.656,0.656 0.281,0.24 10 false 90°

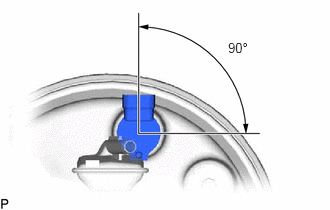

Install the vacuum sensor to the brake booster assembly so that the vacuum sensor is angled as shown in the illustration.


c.

Connect the connector to the vacuum sensor.
