RM35X0E _51 Engine / Hybrid System _078825 STOP AND START _0383280 VACUUM SENSOR ASSEMBLY A

STOP AND START  VACUUM SENSOR ASSEMBLY  REMOVAL


PROCEDURE

Hide 89421B 1.REMOVE VACUUM SENSOR

a.

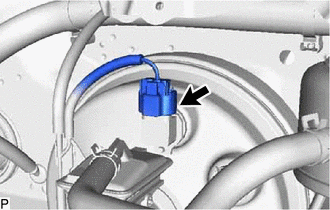

A438024

Disconnect the connector from the vacuum sensor.


b.

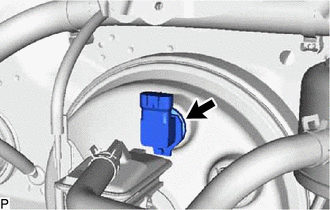

A438025

Remove the vacuum sensor from the brake booster assembly.


c.

Remove the vacuum sensor grommet from the brake booster assembly.
