7GR-FKS EMISSION CONTROL  PCV VALVE  REMOVAL

11209 1.REMOVE V-BANK COVER SUB-ASSEMBLY (w/ Cover)

17126 2.REMOVE NO. 2 SURGE TANK STAY

12601B 3.REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY (w/o Secondary Air Injection System)

a.

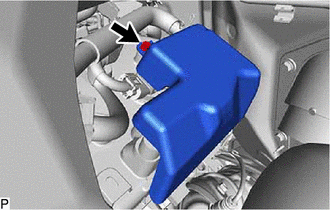

Remove the bolt and No. 1 engine cover sub-assembly.

12261 4.DISCONNECT PCV HOSE

a.

0.052,0.052 0.333,0.271 0.281,0.219 12 true *A 0.073,2.75 0.354,3 0.281,0.25 12 true *B

*A	w/o Secondary Air Injection System
*B	w/ Secondary Air Injection System

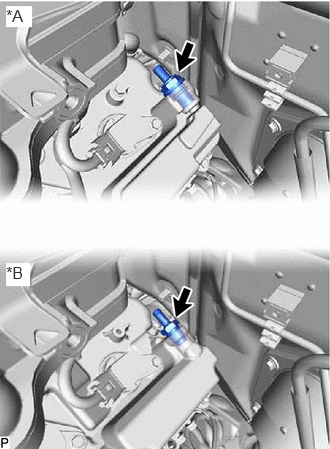

Slide the clip and disconnect the PCV hose from the PCV valve (ventilation valve sub-assembly).

12204 5.REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

a.

0.063,0.063 0.333,0.281 0.271,0.219 12 true *A 0.063,2.74 0.313,2.979 0.25,0.24 12 true *B

*A	w/o Secondary Air Injection System
*B	w/ Secondary Air Injection System

Remove the PCV valve (ventilation valve sub-assembly) from the cylinder head cover sub-assembly LH.
