7GR-FKS FUEL  FUEL SENDER GAUGE ASSEMBLY  INSPECTION


PROCEDURE

Hide 83320 1.INSPECT FUEL SENDER GAUGE ASSEMBLY

CAUTION:

Perform the inspection in a well-ventilated area.

Do not perform the inspection near an open flame.


a.

Check that the float moves smoothly between F and E.


b.

Check the fuel sender gauge assembly voltage.

i.
A442917C01
0.083,0.052 0.323,0.25 0.24,0.198 10 false *a 1.875,1.875 2.156,2.063 0.281,0.188 10 false *b
*a Component without harness connected
(Fuel Sender Gauge Assembly)
*b Voltage Applied between Terminals


Apply 5 V between terminals 2 and 3.

NOTICE:
·

Be careful when connecting the leads, as the fuel sender gauge assembly may be damaged if the leads are connected to the wrong terminals.

·

Do not apply more than 6 V to terminals 2 or 3.



HINT:

If a stable power supply is not available, connect 4 nickel-metal hydride batteries (1.2 V each) or equivalent in series.



ii.

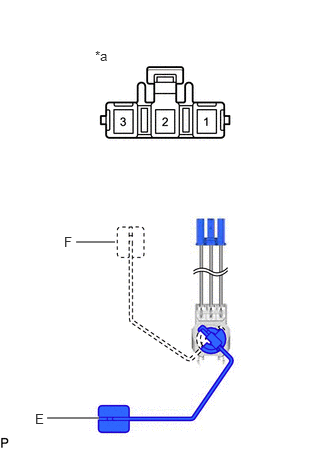

A434459C01
0.792,2.521 1.198,2.521 true 0.49,4.354 1.031,4.354 true 0.99,0.5 1.229,0.729 0.24,0.229 10 false *a 0.667,2.438 0.823,2.635 0.156,0.198 10 false F 0.365,4.281 0.521,4.479 0.156,0.198 10 false E
*a Component without harness connected
(Fuel Sender Gauge Assembly)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Float Level Specified Condition
2 - 3 F 4.23 to 4.57 V*
Between F and E 0.38 to 4.57 V* (Gradually changes)
E 0.38 to 0.72 V*


*: The output voltage changes depending on the voltage applied to the terminals.

Output voltage (F) = (0.846 x Voltage applied to terminals) to (0.914 x Voltage applied to terminals)

Output voltage (E) = (0.076 x Voltage applied to terminals) to (0.144 x Voltage applied to terminals)

If the result is not as specified, replace the fuel sender gauge assembly.
