7GR-FKS FUEL  FUEL PUMP  INSPECTION

1.75,0.99 2.115,0.344 2.115,0.344 2.354,0.344 true 0.458,0.865 0.688,0.865 0.688,0.865 1.115,1.354 true 2.396,1.365 2.688,0.833 2.688,0.833 2.927,0.833 true 0.052,0.042 0.271,0.281 0.219,0.24 10 false *a 0.271,0.781 0.469,0.979 0.198,0.198 10 false W 2.417,0.271 2.625,0.469 0.208,0.198 10 false V 3,0.76 3.198,0.958 0.198,0.198 10 false U

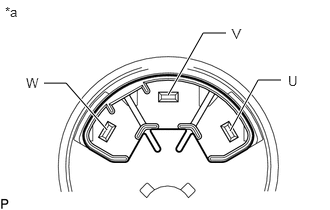

*a	Component without harness connected (Fuel Pump)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Specified Condition
U - V	0.05 to 3.0 Ω
V - W	0.05 to 3.0 Ω
U - W	0.05 to 3.0 Ω

If the result is not as specified, replace the fuel pump.
