7GR-FKS FUEL  FUEL PRESSURE SENSOR(for High Pressure)  INSPECTION

1.583,0.771 2,0.333 2,0.333 2.167,0.333 true 1.427,0.771 1.042,0.313 1.042,0.313 0.875,0.313 true 0.167,0.167 0.479,0.323 0.313,0.156 10 false *a 1.688,1.844 2,2 0.313,0.156 10 false *b 2.208,0.26 2.521,0.458 0.313,0.198 10 false VC 0.688,0.24 1,0.438 0.313,0.198 10 false E2

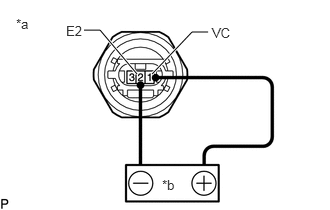

*a	Component without harness connected (Fuel Pressure Sensor)
*b	Voltage Applied between Terminals

Apply 5 V between terminals 1 (VC) and 2 (E2).

NOTICE:

·

Be careful when connecting the leads as the fuel pressure sensor may be damaged if the leads are connected to the wrong terminals.

·

Do not apply more than 6 V to terminals 1 (VC) and 2 (E2).

HINT:

If a stable power supply is not available, connect 4 nickel-metal hydride batteries (1.2 V each) or equivalent in series.

1.615,1.156 1.313,1.667 1.313,1.667 1.313,1.833 true 1.729,1.167 1.99,1.667 1.99,1.667 1.99,1.833 true 0.125,0.125 0.438,0.281 0.313,0.156 10 false *a 1.948,1.865 2.26,2.063 0.313,0.198 10 false E2 1.24,1.865 1.552,2.063 0.313,0.198 10 false PR

*a	Component without harness connected (Fuel Pressure Sensor)

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
3 (PR) - 2 (E2)	Pressure not applied to fuel pressure sensor	Approximately 0.4 to 0.6 V*

*: The output voltage changes depending on the voltage applied to the terminals.

If the result is not as specified, replace the fuel pressure sensor (fuel delivery pipe with sensor assembly LH).
