RM35X0E _51 Engine / Hybrid System _078884 CRUISE CONTROL _0383150 LANE CONTROL SYSTEM U

CRUISE CONTROL  LANE CONTROL SYSTEM  TERMINALS OF ECU


CHECK FORWARD RECOGNITION CAMERA


NOTICE:
·

DTCs may be output when connectors are disconnected during inspection. Therefore, be sure to clear the DTCs using the GTS once the inspection has been completed.

·

Do not apply excessive force to the forward recognition camera connector.

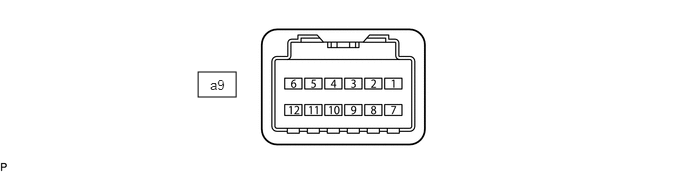

A417823E33
2.063,0.75 2.458,1.01 0.396,0.26 2.188,0.802 2.646,1 0.458,0.198 10 false a9

a.

Measure the voltage and resistance according to the value(s) in the table below.

Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
a9-7 (IGB) - a9-10 (GND) B - W-B Power source Ignition switch ON 11 to 14 V*1
10.5 to 16 V*2
Ignition switch off Below 1 V
a9-3 (LKSW) - a9-10 (GND) V - W-B Steering pad switch signal
(LDA main switch signal) 		Ignition switch off
LDA main switch off 		1 MΩ or higher
Ignition switch off
LDA main switch on 		228 to 252 Ω
a9-10 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω

*1: w/o Stop and Start System

*2: w/ Stop and Start System


b.

Check for pulses according to the value(s) in the table below.

HINT:

If the waveform is not similar to that shown in the illustration, a malfunction of a CAN bus line, terminating resistor, or the forward recognition camera is suspected.


Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
a9-5 (CA1P) - a9-10 (GND) V - W-B CAN communication signal Ignition switch ON Pulse generation
(See waveform 1)
a9-11 (CA1N) - a9-10 (GND) W - W-B CAN communication signal Ignition switch ON Pulse generation
(See waveform 2)
a9-6 (CANH) - a9-10 (GND) L - W-B CAN communication signal Ignition switch ON Pulse generation
(See waveform 1)
a9-12 (CANL) - a9-10 (GND) W - W-B CAN communication signal Ignition switch ON Pulse generation
(See waveform 2)

i.
C414516E01
2.76,0.323 3.313,0.594 0.552,0.271 10 false 1 V/DIV. 1.427,1.917 2.156,2.146 0.729,0.229 10 false 10 μs/DIV.

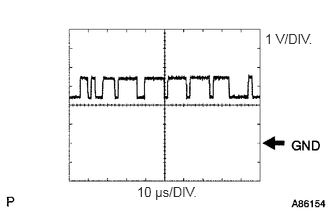

WAVEFORM 1

Item Content
Terminal Name Between a9-5 (CA1P) and a9-10 (GND)
Between a9-6 (CANH) and a9-10 (GND)
Tester Range 1 V/DIV., 10 μs/DIV.
Condition Ignition switch ON

HINT:

The waveform varies depending on the CAN communication signal.



ii.
C414517E01
1.438,1.875 2.24,2.135 0.802,0.26 10 false 10 μs/DIV. 2.792,0.302 3.365,0.531 0.573,0.229 10 false 1 V/DIV.

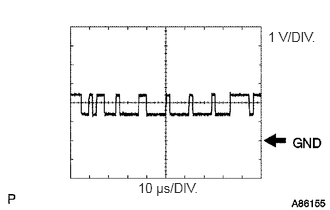

WAVEFORM 2

Item Content
Terminal Name Between a9-11 (CA1N) and a9-10 (GND)
Between a9-12 (CANL) and a9-10 (GND)
Tester Range 1 V/DIV., 10 μs/DIV.
Condition Ignition switch ON

HINT:

The waveform varies depending on the CAN communication signal.
