RM35X0E _52 Drivetrain _078741 AC60E AUTOMATIC TRANSMISSION / TRANSAXLE _0382080 SHIFT LEVER KNOB A

AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  SHIFT LEVER KNOB  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 33622 1.DISCONNECT NO. 1 SHIFT LEVER KNOB COVER

a.

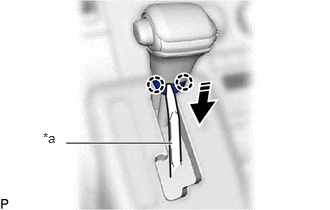

C407628C01
0.688,1.49 1.792,1.49 true 0.448,1.354 0.76,1.552 0.313,0.198 10 false *a
*a Moulding Remover A
V113147

Disconnect in this Direction


Using a moulding remover A, detach the 2 claws to disconnect the No. 1 shift lever knob cover as shown in the illustration.


Hide 33504F 2.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

a.

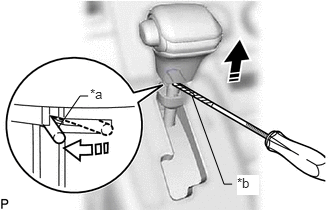

C407629C01
2.417,1.917 2.333,1.917 2.333,1.917 2,1 false 0.917,1 0.833,1 0.833,1 0.604,1.333 false 0.938,0.896 1.25,1.052 0.313,0.156 10 false *a 2.469,1.823 2.698,2.031 0.229,0.208 10 true *b
*a Clip
*b Protective Tape
V113147

Remove in this Direction
V113148

Expand the Left Side of the Clip


Using a screwdriver with its tip wrapped with protective tape, expand the left side of the clip and remove the shift lever knob sub-assembly and No. 1 shift lever knob cover from the shift lock control unit assembly as shown in the illustration.

NOTICE:

Be careful not to damage the shift lever knob sub-assembly.
