RM35X0E _52 Drivetrain _078741 AC60E AUTOMATIC TRANSMISSION / TRANSAXLE _0382081 TRANSMISSION CONTROL CABLE A

AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  TRANSMISSION CONTROL CABLE  INSTALLATION


PROCEDURE

Hide 33820B 1.INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

a.

Install the transmission control cable assembly from outside the vehicle body with the 2 bolts.

Torque:
5.5 N*m (56 kgf*cm, 49 in.*lbf)


b.

Connect the transmission control cable assembly to the vehicle body with the 2 nuts.

Torque:
5.5 N*m (56 kgf*cm, 49 in.*lbf)


c.

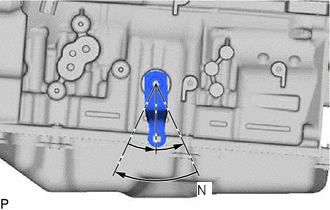

C411038N01
2.052,1.896 2.208,2.094 0.156,0.198 10 true N

Turn the control shaft lever LH clockwise until it stops, and then return the control shaft lever counterclockwise 2 notches to N.


d.

Connect the transmission control cable to the transmission control cable bracket with a new clip, and then connect the cable end to the control shaft lever LH with the nut.

Torque:
12 N*m (122 kgf*cm, 9 ft.*lbf)


Hide 33820B 2.CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

a.
C194520C31
2.271,2.573 2.615,2.573 false 1.948,1.75 2.083,1.531 2.083,1.531 2.188,1.531 false 1.594,0.958 1.781,1.135 0.188,0.177 10 false *c 1.792,1.344 1.979,1.521 0.188,0.177 10 false *c 2.438,0.781 2.625,0.958 0.188,0.177 10 false *d 2.25,1.458 2.51,1.656 0.26,0.198 10 false *a 2.229,2.313 2.417,2.49 0.188,0.177 10 false *d 2.656,2.49 2.958,2.729 0.302,0.24 10 false *b
*a Slider
*b Lock Piece
*c Slide
*d Pull


Slide the slider of the transmission control cable assembly in the direction indicated by the arrow in the illustration and pull the lock piece outward.


b.

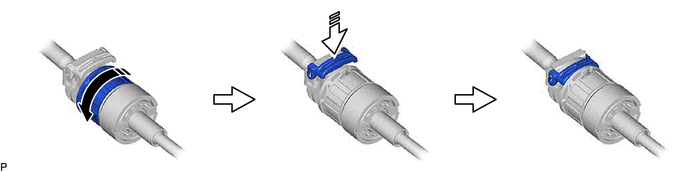

Turn the lock nut of the transmission control cable assembly approximatery 180° counterclockwise. While holding the lock nut in place, push in the cable lock to lock the lock nut.

C428237C02
0,0 0,0 false
*1 Cable Lock *2 Lock Nut
V113147

Rotate the socket counterclockwise approximately 180°
V113148

Push In


NOTICE:

Do not over-rotate the nut as it will come off the internal spring and the transmission control cable assembly will not be reusable.



c.

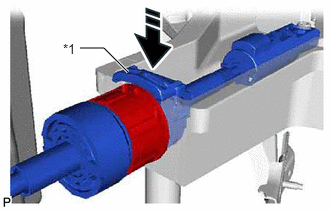

C412096C01
0.833,0.5 1.083,0.5 1.083,0.5 1.333,0.75 true 0.656,0.427 0.969,0.583 0.313,0.156 10 false *1
*1 Cable Lock
V113147

Connect in this Direction


Connect the transmission control cable assembly to the transmission instrument panel shift assembly retainer. Check that the stopper returns to the pulled-out position.


d.
C415444C01
1.229,0.656 1.385,0.854 0.156,0.198 10 false -
V113147

Connect in this Direction


Connect the end of the transmission control cable assembly to the transmission floor shift assembly.

NOTICE:
·

The shift lever should be in N.

·

Make sure that the lock piece is pulled up.

·

Push on the end of the cable all the way to the base of the transmission floor shift assembly pin.




e.
C296262

Push the lock piece into the adjuster case.

NOTICE:
·

Check that the park/neutral position switch assembly and shift lever are in neutral.

·

Securely push in the lock piece until it locks.
