AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  SHIFT LEVER  DISASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 1.REMOVE SLIDE COVER SUB-ASSEMBLY

a.
C412099

Detach the 4 claws and 2 guides and remove the slide cover sub-assembly from the shift lock control unit assembly.


Hide 35975 2.REMOVE POSITION INDICATOR SLIDE COVER

a.

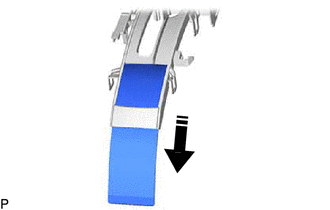

C412100C01
1.823,1.521 1.979,1.719 0.156,0.198 10 false -
V113147

Remove in this Direction


Remove the position indicator slide cover with No. 2 position indicator slide cover from the lower position indicator housing.


Hide 35976 3.REMOVE NO. 2 POSITION INDICATOR SLIDE COVER

a.

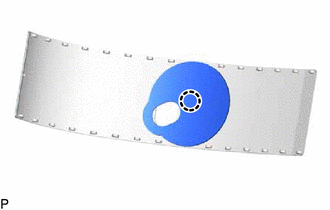

C412063

Detach the claw and remove the No. 2 position indicator slide cover from the position indicator slide cover.


Hide 33554 4.REMOVE SHIFT LEVER CAP

a.

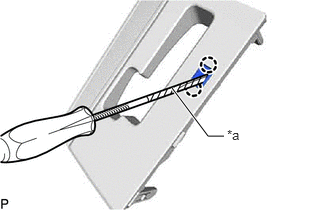

C407652C01
1.792,0.917 2.167,1.417 2.167,1.417 2.333,1.417 true 2.365,1.323 2.677,1.521 0.313,0.198 10 false *a
*a Protective Tape


Using a screwdriver, detach the 2 claws and remove the shift lever cap from the position indicator housing assembly.

NOTICE:

Be careful not to damage the shift lever cap and position indicator housing assembly.



Hide 35970F 5.REMOVE POSITION INDICATOR HOUSING ASSEMBLY

a.

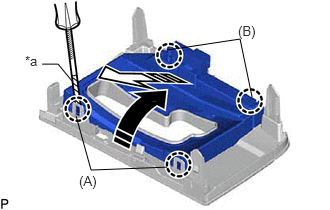

C407655C01
0.792,1.208 0.948,1.771 0.948,1.771 1.74,1.74 false 1.74,0.521 2.5,0.406 2.5,0.406 2.625,1.01 false 0.438,0.667 0.604,0.667 0.604,0.667 0.75,0.844 false 0.823,1.802 1.135,2 0.313,0.198 10 false (A) 2.479,0.24 2.792,0.438 0.313,0.198 10 false (B) 0.26,0.552 0.573,0.75 0.313,0.198 10 false *a 1.583,0.958 1.74,1.156 0.156,0.198 10 false -
*a Protective Tape
V113147

Disconnect in this Direction
V113148

Remove in this Direction


Using a screwdriver, detach the 2 claws (A) and disconnect the lower position indicator housing from the upper position indicator housing assembly in the direction shown in the illustration.

NOTICE:

Be careful not to damage the lower position indicator housing assembly and upper position indicator housing assembly.



b.

Detach the 2 claws (B) and remove the lower position indicator housing from the upper position indicator housing assembly in the direction shown in the illustration.


c.

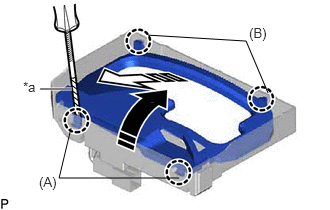

C407653C01
0.417,0.927 0.75,0.927 true 1.865,1.854 0.615,1.854 0.615,1.854 0.74,1.333 false 2.792,0.969 2.563,0.427 2.563,0.427 1.542,0.365 false 0.24,0.823 0.552,1.021 0.313,0.198 10 false *a 0.406,1.813 0.719,2.01 0.313,0.198 10 false (A) 2.594,0.26 2.875,0.542 0.281,0.281 10 false (B) 1.563,0.969 1.719,1.167 0.156,0.198 10 false -
*a Protective Tape
V113147

Disconnect in this Direction
V113148

Remove in this Direction


Using a screwdriver, detach the 2 claws (A) and disconnect the position indicator plate control from the lower position indicator housing in the direction shown in the illustration.

NOTICE:

Be careful not to damage the lower position indicator housing and position indicator plate control.



d.

Detach the 2 claws (B) and remove position indicator housing assembly from the lower position indicator housing assembly in the direction shown in the illustration.


e.

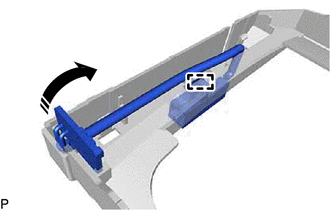

C407654C01
0.854,0.656 1.01,0.854 0.156,0.198 6 false -
V113147

Remove in this Direction


Detach the clamp to remove the indicator light wire sub-assembly from the lower position indicator housing.
