CRUISE CONTROL  SPEED LIMITER SYSTEM  TERMINALS OF ECU

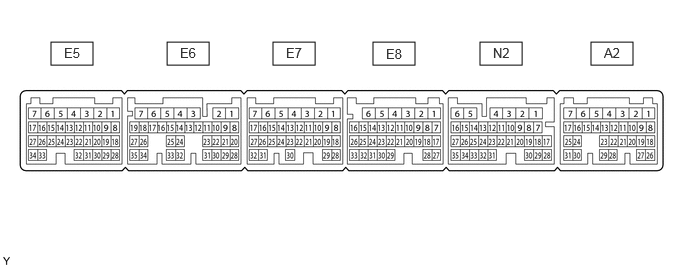

CHECK ECM (for 1GD-FTV)

0.531,0.438 0.969,0.677 0.438,0.24 1.74,0.438 2.177,0.677 0.438,0.24 2.844,0.438 3.281,0.677 0.438,0.24 3.885,0.438 4.323,0.677 0.438,0.24 5,0.438 5.438,0.677 0.438,0.24 6.156,0.438 6.594,0.677 0.438,0.24 1.875,0.469 2.188,0.667 0.313,0.198 10 false E6 0.667,0.469 0.979,0.667 0.313,0.198 10 false E5 2.979,0.469 3.292,0.667 0.313,0.198 10 false E7 4.021,0.479 4.333,0.677 0.313,0.198 10 false E8 5.135,0.469 5.448,0.667 0.313,0.198 10 false N2 6.292,0.469 6.604,0.667 0.313,0.198 10 false A2

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
A2-5 (E1) - Body ground	W-B - Body ground	Ground	Always	Below 1 Ω
A2-27 (ASLM) - A2-5 (E1)	SB - W-B	Speed limiter switch signal	Speed limiter switch on	Below 1 Ω
			Speed limiter switch off	10 kΩ or higher
N2-1 (BATT) - Body ground	L - Body ground	Power source circuit	Always	11 to 14 V

CHECK ECM (for 7GR-FKS)

0.625,0.385 1.042,0.615 0.417,0.229 1.719,0.385 2.135,0.615 0.417,0.229 2.875,0.385 3.292,0.615 0.417,0.229 3.927,0.396 4.344,0.625 0.417,0.229 5.031,0.406 5.448,0.635 0.417,0.229 6.135,0.417 6.552,0.646 0.417,0.229 6.26,0.469 6.573,0.667 0.313,0.198 10 false A1 0.771,0.438 1.083,0.635 0.313,0.198 10 false E1 1.844,0.427 2.156,0.625 0.313,0.198 10 false E2 3.021,0.427 3.333,0.625 0.313,0.198 10 false E3 4.073,0.448 4.385,0.646 0.313,0.198 10 false E4 5.167,0.458 5.479,0.656 0.313,0.198 10 false N1

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
E3-1 (E1) - Body ground	W-B - Body ground	Ground	Always	Below 1 Ω
N1-18 (ASLM) - E3-1 (E1)	SB - W-B	Speed limiter switch signal	Speed limiter switch on	Below 1 Ω
			Speed limiter switch off	10 kΩ or higher
A1-2 (BATT) - Body ground	B - Body ground	Power source circuit	Always	11 to 14 V
