CRUISE CONTROL SPEED LIMITER SYSTEM OPERATION CHECK
CHECK SPEED LIMITER INDICATOR AND MULTI-INFORMATION DISPLAY
Turn the ignition switch to ON.

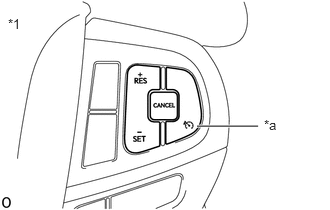

| *1 | Steering Pad Switch Assembly |
| *a | Speed Limiter Switch |
Check that the speed limiter indicator turns on when the speed limiter is turned on using the speed limiter switch and that the speed limiter indicator turns off when the speed limiter is turned off using the speed limiter switch.
Check that the status of the speed limiter operation appears on the main display or multi-information display.
| Condition | Multi-information Display | Warning Buzzer | |
|---|---|---|---|
| Speed Limiter Switch On | Adjustable speed limiter indicator illuminates | Does not sound | |
| Mode Set | Effecting Control | ·
Adjustable speed limiter indicator illuminates ·
Set vehicle limit speed is displayed |
Does not sound |
| Interrupt Control | ·
Adjustable speed limiter indicator illuminates ·
Set vehicle limit speed is displayed as "--" |
Does not sound | |
| Set Speed Exceeded | ·
Adjustable speed limiter indicator illuminates ·
Set vehicle limit speed is highlighted |
Sounds* | |
| System Malfunction | ·
Adjustable speed limiter indicator does not illuminate ·
"Speed Limiter Malfunction Visit Your Dealer" is displayed |
Sounds | |
*: The warning buzzer does not sound under the following conditions:
The override control is operating
The vehicle speed becomes higher than the set speed while coasting
The vehicle speed is higher than the set speed when the speed limiter system is resumed
