RM35X0E _51 Engine / Hybrid System _078884 CRUISE CONTROL _0382737 SPEED LIMITER SYSTEM D

CRUISE CONTROL  SPEED LIMITER SYSTEM  ROAD TEST


INSPECT SET FUNCTION


a.

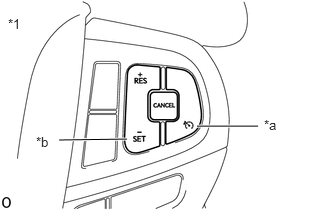

C411409C01
0.615,1.458 1.323,1.448 true 2.052,1.313 2.688,1.313 true 0.083,0.167 0.396,0.323 0.313,0.156 10 false *1 2.75,1.219 3.063,1.375 0.313,0.156 10 false *a 0.375,1.396 0.688,1.552 0.313,0.156 10 false *b
*1 Steering Pad Switch Assembly
*a Speed Limiter Switch
*b -SET Switch


Turn the speed limiter system on using the speed limiter switch.


b.

Check that the speed limiter indicator illuminates in the combination meter assembly.


c.

Drive the vehicle at 30 km/h (20 mph) or more.


d.

Push the -SET switch.


e.

Check that the vehicle speed is limited to the set speed.



INSPECT ACCELERATION FUNCTION


a.
C411409C01
0.615,1.458 1.323,1.448 true 2.052,1.313 2.688,1.313 true 0.083,0.167 0.396,0.323 0.313,0.156 10 false *1 2.75,1.219 3.063,1.375 0.313,0.156 10 false *a 0.375,1.396 0.688,1.552 0.313,0.156 10 false *b
*1 Steering Pad Switch Assembly
*a Speed Limiter Switch
*b -SET Switch


Turn the speed limiter system on using the speed limiter switch.


b.

Drive the vehicle at 30 km/h (20 mph) or more.


c.

Push the -SET switch.


d.

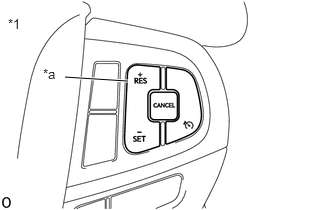

C411409C02
0.677,0.802 1.333,0.844 true 0.083,0.167 0.396,0.323 0.313,0.156 10 false *1 0.448,0.688 0.76,0.844 0.313,0.156 10 false *a
*1 Steering Pad Switch Assembly
*a +RES Switch


Check that the vehicle limit speed increases by an interval of 5 km/h (5 mph) while the +RES switch is pushed, and that the vehicle maintains the newly set speed when the switch is released.


e.

Push the +RES switch and then release it immediately. Check that the vehicle limit speed increases by approximately 1 km/h (1 mph) (tap-up control).



INSPECT COAST FUNCTION


a.
C411409C01
0.615,1.458 1.323,1.448 true 2.052,1.313 2.688,1.313 true 0.083,0.167 0.396,0.323 0.313,0.156 10 false *1 2.75,1.219 3.063,1.375 0.313,0.156 10 false *a 0.375,1.396 0.688,1.552 0.313,0.156 10 false *b
*1 Steering Pad Switch Assembly
*a Speed Limiter Switch
*b -SET Switch


Turn the speed limiter system on using the speed limiter switch.


b.

Drive the vehicle at 30 km/h (20 mph) or more.


c.

Push the -SET switch.


d.

Check that vehicle limit speed decreases by an interval of 5 km/h (5 mph) while the -SET switch is pushed, and that the vehicle maintains the newly set speed when the switch is released.


e.

Push the -SET switch, and then release it immediately. Check that the vehicle limit speed decreases by approximately 1 km/h (1 mph) (tap-down control).



HINT:

The lowest possible set speed is approximately 30 km/h (20 mph). The speed limiter system cannot be set below the lowest possible set speed.


INSPECT CANCEL FUNCTION


a.
C411409C01
0.615,1.458 1.323,1.448 true 2.052,1.313 2.688,1.313 true 0.083,0.167 0.396,0.323 0.313,0.156 10 false *1 2.75,1.219 3.063,1.375 0.313,0.156 10 false *a 0.375,1.396 0.688,1.552 0.313,0.156 10 false *b
*1 Steering Pad Switch Assembly
*a Speed Limiter Switch
*b -SET Switch


Turn the speed limiter system on using the speed limiter switch.


b.

Drive the vehicle at 30 km/h (20 mph) or more.


c.

Push the -SET switch.


d.

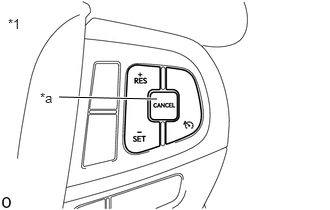

C411409C03
0.615,1.01 1.635,1.031 true 0.083,0.167 0.396,0.323 0.313,0.156 10 false *1 0.417,0.938 0.729,1.094 0.313,0.156 10 false *a
*1 Steering Pad Switch Assembly
*a CANCEL Switch


When performing one of the following, check that the speed limiter system control of vehicle speed is canceled.

·

Pushing the CANCEL switch.*1

·

VSC is turned off.*1

·

Turning the speed limiter system off using the speed limiter switch*2

·

Pushing the cruise control main switch on*2

*1: The stored vehicle limit speed in the ECM is maintained

*2: The stored vehicle limit speed in the ECM is not maintained





INSPECT RESUME FUNCTION


a.
C411409C01
0.615,1.458 1.323,1.448 true 2.052,1.313 2.688,1.313 true 0.083,0.167 0.396,0.323 0.313,0.156 10 false *1 2.75,1.219 3.063,1.375 0.313,0.156 10 false *a 0.375,1.396 0.688,1.552 0.313,0.156 10 false *b
*1 Steering Pad Switch Assembly
*a Speed Limiter Switch
*b -SET Switch


Turn the speed limiter system on using the speed limiter switch.


b.

Drive the vehicle at 30 km/h (20 mph) or more.


c.

Push the -SET switch.


d.
C411409C03
0.615,1.01 1.635,1.031 true 0.083,0.167 0.396,0.323 0.313,0.156 10 false *1 0.417,0.938 0.729,1.094 0.313,0.156 10 false *a
*1 Steering Pad Switch Assembly
*a CANCEL Switch


Push the CANCEL switch.


e.
C411409C02
0.677,0.802 1.333,0.844 true 0.083,0.167 0.396,0.323 0.313,0.156 10 false *1 0.448,0.688 0.76,0.844 0.313,0.156 10 false *a
*1 Steering Pad Switch Assembly
*a +RES Switch


After pushing the +RES switch while driving the vehicle at 30 km/h (20 mph) or more, check that the vehicle limit speed set at the time of cancellation is resumed.



INSPECT OVERRIDE FUNCTION


a.
C411409C01
0.615,1.458 1.323,1.448 true 2.052,1.313 2.688,1.313 true 0.083,0.167 0.396,0.323 0.313,0.156 10 false *1 2.75,1.219 3.063,1.375 0.313,0.156 10 false *a 0.375,1.396 0.688,1.552 0.313,0.156 10 false *b
*1 Steering Pad Switch Assembly
*a Speed Limiter Switch
*b -SET Switch


Turn the speed limiter system on using the speed limiter switch.


b.

Drive the vehicle at 30 km/h (20 mph) or more.


c.

Push the -SET switch.


d.

Fully depress the accelerator pedal and check that the vehicle accelerates beyond the set speed.
