RM35X0E _53 Suspension _078877 REAR SUSPENSION _0382540 REAR LEAF SPRING A

REAR SUSPENSION  REAR LEAF SPRING  REASSEMBLY


PROCEDURE

Hide 1.INSTALL NO. 3 LEAF SPRING BUSH

a.

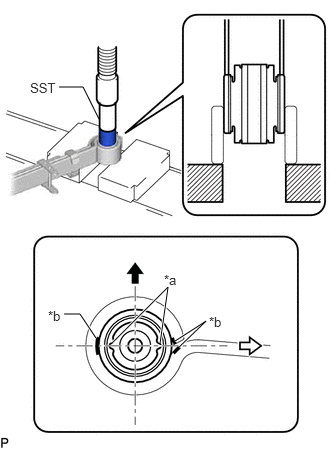

C413768C01
0.615,0.906 0.865,0.906 0.865,0.906 1.031,1.24 false 1.667,3.573 1.75,2.99 1.75,2.99 1.167,3.573 true 1.865,3.615 2.146,3.344 2.146,3.344 1.823,3.552 true 1,3.521 0.833,3.271 0.833,3.271 0.667,3.271 true 1.708,2.833 2.208,3.167 0.5,0.333 10 false *a 0.313,0.833 0.729,1.083 0.417,0.25 10 false SST 2.177,3.271 2.51,3.521 0.333,0.25 10 false *b 0.5,3.208 0.833,3.458 0.333,0.25 10 false *b
*a Protrusion
*b Matchmark
V100135

Upper of the Vehicle
V100136

Rear of the Vehicle


Temporarily install the No. 3 leaf spring bush, aligning with the matchmarks so that the protrusions are facing as shown in the illustration.


b.

Using SST and a press, install the No. 3 leaf spring bush.

SST
09710-30041  (09710-03221)


Hide 2.INSTALL NO. 4 LEAF SPRING BUSH

a.

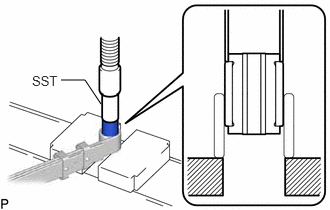

C413770N01
0.635,0.833 0.885,0.833 0.885,0.833 1.052,1.083 false 0.333,0.76 0.75,1.01 0.417,0.25 10 false SST

Using SST and a press, install a new No. 4 leaf spring bush.

SST
09710-20011  (09710-06041)


Hide 48252 3.INSTALL REAR SPRING SILENCER (for Van Standard Roof)

a.

Install the 2 rear spring silencers to the rear No. 3 leaf spring with the 2 nuts.

Torque:
38.3 N*m (391 kgf*cm, 28 ft.*lbf)


Hide 48253 4.INSTALL REAR NO. 1 SPRING SPACER (for Van Standard Roof)

a.

Install 4 new rear No. 1 spring spacers to the rear No. 2 leaf spring.


b.

Install the 2 rear No. 1 spring spacers to the rear No. 2 leaf spring.


c.

Install 4 new rear No. 1 spring spacers to the rear No. 3 leaf spring.


Hide 48252F 5.INSTALL REAR NO. 3 SPRING SILENCER (except Van Standard Roof)

a.

Install the 2 rear No. 3 spring silencers to the rear No. 2 leaf spring.


b.

Install 4 new rear No. 3 spring silencers to the rear No. 2 leaf spring.


c.

Install the 2 rear No. 3 spring silencers to the rear No. 3 leaf spring.


d.

Install 4 new rear No. 3 spring silencers to the rear No. 3 leaf spring.


Hide 48220 6.REASSEMBLY REAR LEAF SPRING ASSEMBLY

a.
C305892

Secure the springs with a vise and install the nut, rear spring center bolt and 2 rear No. 1 spring spacers

Torque:
49 N*m (500 kgf*cm, 36 ft.*lbf)


b.

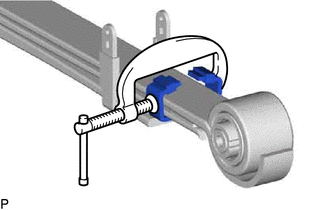

C413983

Using a vise, caulk the clip.


c.

Check that there is no gap between the spring clip and spring.


Hide 48375 7.INSTALL LEAF SPRING DYNAMIC DAMPER (except Van Standard Roof, w/ Dynamic Damper)

a.

Install the leaf spring dynamic damper with the rear spring clip set hexagon bolt and nut.

Torque:
18.2 N*m (186 kgf*cm, 13 ft.*lbf)


Hide 48246 8.INSTALL REAR SPRING CLIP BOLT CASE (except Van Standard Roof, w/ Clip Bolt Case)

a.

Install the rear spring clip bolt case with the rear spring clip set hexagon bolt and nut.

Torque:
18.2 N*m (186 kgf*cm, 13 ft.*lbf)
