REAR SUSPENSION  REAR LEAF SPRING  DISASSEMBLY


PROCEDURE

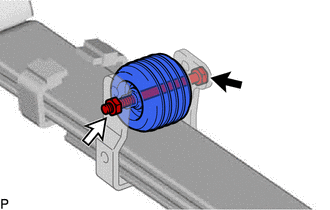

Hide 48375 1.REMOVE LEAF SPRING DYNAMIC DAMPER (except Van Standard Roof, w/ Dynamic Damper)

a.
C409658

Remove the rear spring clip set hexagon bolt, nut and leaf spring dynamic damper.

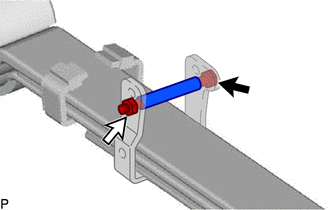

Hide 48246 2.REMOVE REAR SPRING CLIP BOLT CASE (except Van Standard Roof, w/ Clip Bolt Case)

a.
C413960

Remove the rear spring clip set hexagon bolt, nut and rear spring clip bolt case.

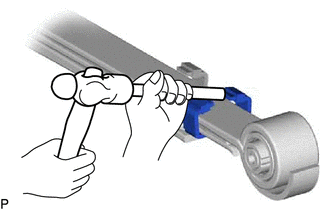

Hide 48220 3.DISASSEMBLE REAR LEAF SPRING ASSEMBLY

a.
C413961

Secure the rear leaf spring assembly in a vise between aluminum plates.


b.

Using a brass bar and hammer, pry open the spring clip of the rear leaf spring.

NOTICE:

Do not damage the leaf spring.



c.
C305892

Remove the nut, rear spring center bolt and 2 rear No. 1 spring spacers .


Hide 48253 4.REMOVE REAR NO. 1 SPRING SPACER (for Van Standard Roof)

a.

Remove the 4 rear No. 1 spring spacers from the rear No. 2 leaf spring.


b.

Remove the 2 rear No. 1 spring spacers from the rear No. 2 leaf spring.


c.

Remove the 4 rear No. 1 spring spacers from the rear No. 3 leaf spring.


Hide 48252 5.REMOVE REAR SPRING SILENCER (for Van Standard Roof)

a.
C413962

Remove the 2 nuts and 2 rear spring silencers from the rear No. 3 leaf spring.


Hide 48252F 6.REMOVE REAR NO. 3 SPRING SILENCER (except Van Standard Roof)

a.

Remove the 2 rear No. 3 spring silencers from the rear No. 2 leaf spring.


b.

Remove the 4 rear No. 3 spring silencers from the rear No. 2 leaf spring.


c.

Remove the 2 rear No. 3 spring silencers from the rear No. 3 leaf spring.


d.

Remove the 4 rear No. 3 spring silencers from the rear No. 3 leaf spring.

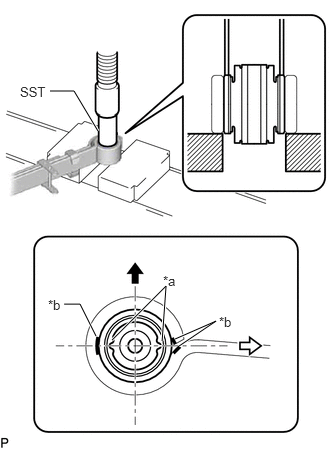

Hide 7.REMOVE NO. 3 LEAF SPRING BUSH

C413767C01
0.521,0.948 0.771,0.948 0.771,0.948 1.021,1.365 true 1.167,3.542 1.729,2.979 1.729,2.979 1.688,3.552 true 1.865,3.604 2.25,3.344 2.25,3.344 1.823,3.531 true 1,3.5 0.833,3.167 0.833,3.167 0.667,3.167 true 0.208,0.875 0.708,1.125 0.5,0.25 10 false SST 1.698,2.844 2.094,3.115 0.396,0.271 10 false *a 2.281,3.271 2.792,3.646 0.51,0.375 10 false *b 0.5,3.094 0.833,3.344 0.333,0.25 10 false *b
*a Protrusion
*b Matchmark
V100135

Upper of the Vehicle
V100136

Rear of the Vehicle


a.

Align the No. 2 leaf spring with the protrusions of the No. 3 leaf spring bush and place matchmarks on the No. 2 leaf spring as shown in the illustration.


b.

Using SST and a press, remove the No. 3 leaf spring bush.

SST
09710-30041  (09710-03221)

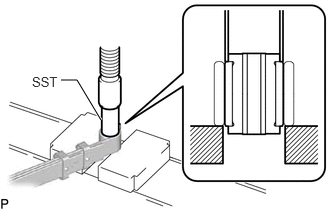

Hide 8.REMOVE NO. 4 LEAF SPRING BUSH

a.
C413769N01
0.635,0.833 0.802,0.833 0.802,0.833 1.052,1.25 true 0.333,0.771 0.833,1.021 0.5,0.25 10 false SST

Using SST and a press, remove the No. 4 leaf spring bush.

SST
09710-20011  (09710-06041)
